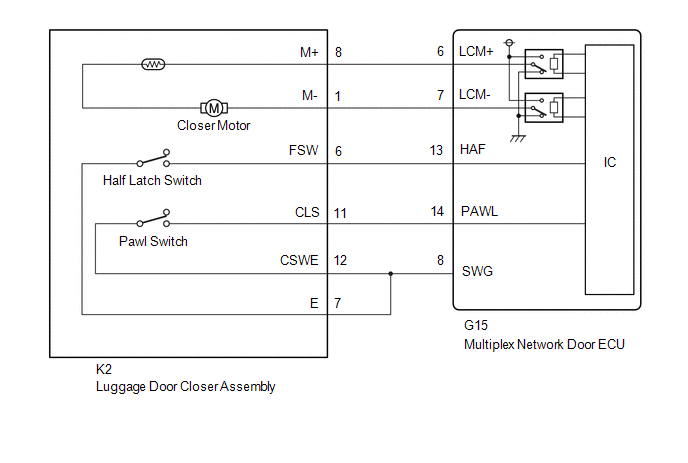

Luggage Compartment Door Closer does not Operate [11/2020 - ]: Wiring Diagram

GTY991876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
