Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 1 [12/2022 - ]
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - ]

  3. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

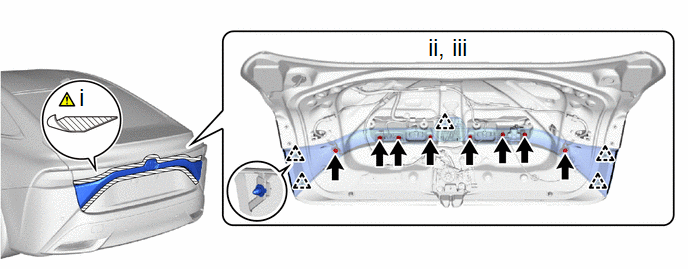

    1. GTY1015320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the luggage compartment door outside garnish sub-assembly.
      2. Remove the 8 screws.
      3. Detach the clip and remove the luggage compartment door outside garnish sub-assembly.
