Caution / Notice / Hint

COMPONENTS (REMOVAL)

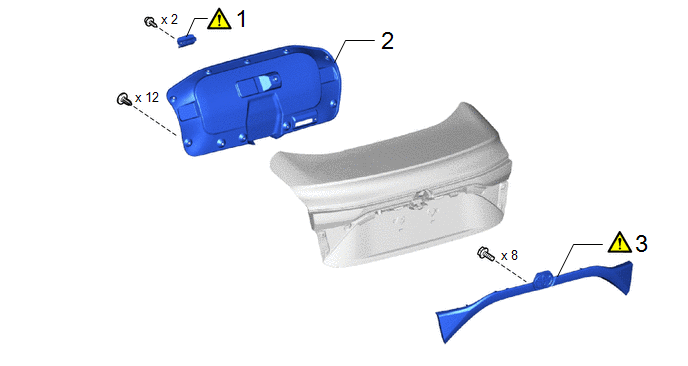

Fig 1: Luggage Compartment Door Outside Garnish Removal Components
GTY1017458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 LUGGAGE COMPARTMENT DOOR ASSIST GRIP 74649 See step  1 - -
2 LUGGAGE COMPARTMENT DOOR COVER 64719A - - -
3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY 76801A See step  3 - -
