Reassembly [11/2020 - ]: Procedure
- INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
- INSTALL SYMBOL EMBLEM
Refer to PROCEDURE - Step 1 [11/2020 - 12/2023] , or refer to PROCEDURE - Step 1 [12/2023 - ] - INSTALL LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING LH
*a Mark-off Line - - Installation Area Double-sided Tape - Clean the luggage compartment door outside garnish surface:
1. When reusing the luggage compartment door outside garnish, remove remaining double-sided tape from the luggage compartment door outside garnish.
2. Using a heat light, heat the luggage compartment door outside garnish surface.
Standard Value
Part Temperature Luggage Compartment Door Outside Garnish 20 to 30°C (68 to 86°F) Luggage Compartment Door Lower Outside Garnish Moulding LH 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the luggage compartment door outside garnish excessively.
3. Remove any remaining double-sided tape from the luggage compartment door outside garnish and wipe off any tape adhesive residue with cleaner.
4. Clean the installation area surface.
NOTE:- Installing the luggage compartment door lower outside garnish moulding LH with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Also, clean a new luggage compartment door outside garnish surface surface.
- Primer application:
1. Apply primer to the luggage compartment door outside garnish on the installation area of the luggage compartment door lower outside garnish moulding LH using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
- Do not touch surfaces to which primer has been applied until the luggage compartment door lower outside garnish moulding LH has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the luggage compartment door outside garnish and a new luggage compartment door lower outside garnish moulding LH.NOTE:
Do not heat the luggage compartment door outside garnish and luggage compartment door lower outside garnish moulding LH excessively.

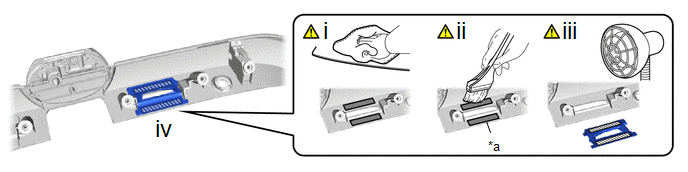

- Install the luggage compartment door lower outside garnish moulding LH in the position shown in the illustration.NOTE:
The application strength of the luggage compartment door lower outside garnish moulding LH will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the luggage compartment door outside garnish.
- Clean the luggage compartment door outside garnish surface:
- INSTALL LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING RH
Use the same procedure described for the LH side.
