Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

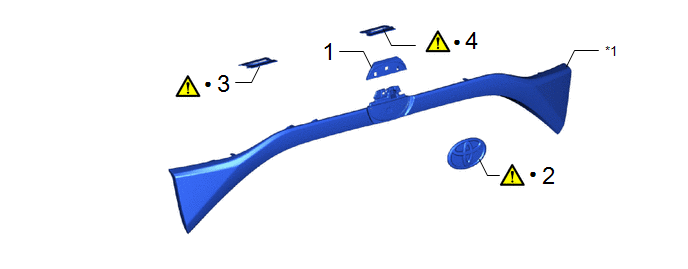

Fig 1: Luggage Compartment Door Outside Garnish Reassembly Components

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	NO. 2 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH	76812B	-	-	-
2	SYMBOL EMBLEM	75741E	See step 2	-	-
3	LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING LH	76816C	See step 3	-	-
4	LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING RH	76815C	See step 4	-	-

*1	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH	-	-
•	Non-reusable part	-	-
