Disassembly [11/2020 - ]: Procedure
- REMOVE LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING LH

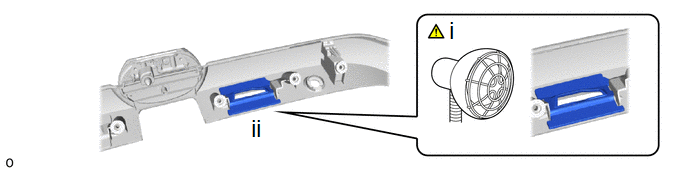

- Heat the adhesive of the luggage compartment door lower outside garnish moulding LH using a heat light.
Standard Value
Part Temperature Luggage Compartment Door Lower Outside Garnish Moulding LH 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the luggage compartment door lower outside garnish moulding LH excessively.
- Remove the luggage compartment door lower outside garnish moulding LH.
- Heat the adhesive of the luggage compartment door lower outside garnish moulding LH using a heat light.
- REMOVE LUGGAGE COMPARTMENT DOOR LOWER OUTSIDE GARNISH MOULDING RH
Use the same procedure described for the LH side. - REMOVE SYMBOL EMBLEM
Refer to PROCEDURE - Step 1 [11/2020 - 12/2023] , or refer to PROCEDURE - Step 1 [12/2023 - ] - REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
