Removal [11/2020 - 11/2021]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [11/2020 - 11/2021]

  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  6. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Refer to PROCEDURE - Step 11

  7. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12
  8. REMOVE FRONT DOOR BELT FRONT SEAL LH

    Refer to PROCEDURE - Step 14

  9. REMOVE FRONT DOOR SERVICE HOLE COVER LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 20
  10. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 17

  11. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 22
  12. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY LH

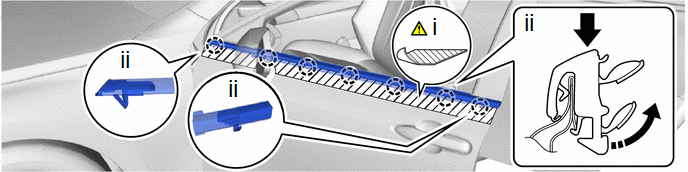

    1. GTY1015888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Push in this Direction
      1. Put protective tape around the front door belt moulding assembly LH.
      2. Detach the claw and remove the front door belt moulding assembly LH as shown in the illustration.
