Caution / Notice / Hint

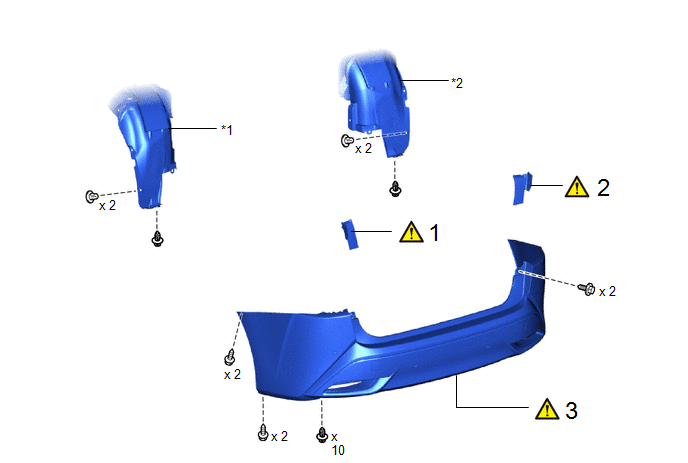

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR COMBINATION LIGHT COVER LH | 81498 | See step 1 | - | - |
| 2 | REAR COMBINATION LIGHT COVER RH | 81497 | See step 2 | - | - |
| 3 | REAR BUMPER ASSEMBLY | - | See step 3 | - | - |
| *1 | REAR WHEEL HOUSE LINER LH | *2 | REAR WHEEL HOUSE LINER RH |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear bumper assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedures | Necessary Procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Rear bumper assembly (Including removal and installation) | w/ Advanced Drive:
|
Advanced drive system | Refer to ADJUSTMENT [11/2021 - ] |
| Rear LiDAR advanced drive sensor assembly (Including removal and installation) | Rear LiDAR beam axis adjustment* |
|
Refer to ADJUSTMENT [11/2021 - ] |
*: If the advanced drive ECU assembly is replaced along, make sure to first perform "Vehicle Information Registration" for the advanced drive ECU assembly. Once work with the advanced drive ECU assembly is complete, then perform registration or beam axis adjustment for each part.
HINT:
- If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.
Refer to ADJUSTMENT [11/2020 - 12/2023]
- If the visual inspection finds a problem, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.
- When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.
- w/ Advanced Park:
Refer to CALIBRATION [11/2020 - 12/2022] , or refer to CALIBRATION [12/2022 - 12/2023]
- w/o Advanced Park:
Refer to CALIBRATION [11/2020 - 12/2022] , or refer to CALIBRATION [12/2022 - 12/2023]
- w/ Advanced Park:
