COMPONENTS (REASSEMBLY)

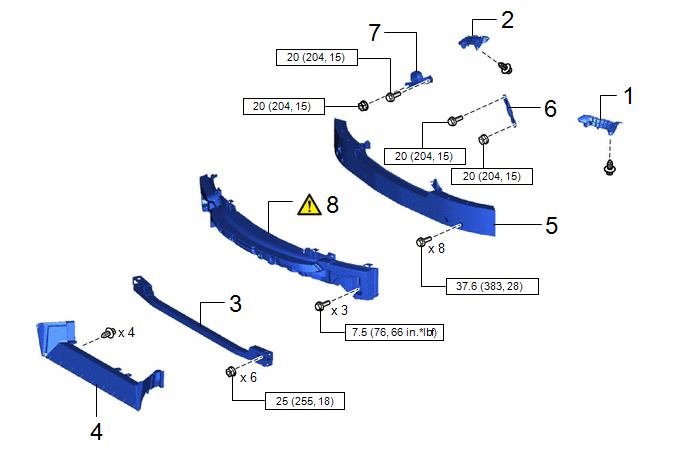

Fig 1: Front Bumper Reassembly Components With Torque Specifications [11/2021 - 12/2023] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT BUMPER SIDE SUPPORT LH	52116A	-	-	-
2	FRONT BUMPER SIDE SUPPORT RH	52115A	-	-	-
3	FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY	52029B	-	-	-
4	LOWER RADIATOR AIR GUIDE PLATE	16683A	-	-	-
5	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	-	-	-
6	UPPER RADIATOR SUPPORT BRACE LH	51466	-	-	-
7	UPPER RADIATOR SUPPORT BRACE RH	51465	-	-	-
8	FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY	-	See step 8	-	-

N.m (kgf/cm, ft.lbf): Specified torque

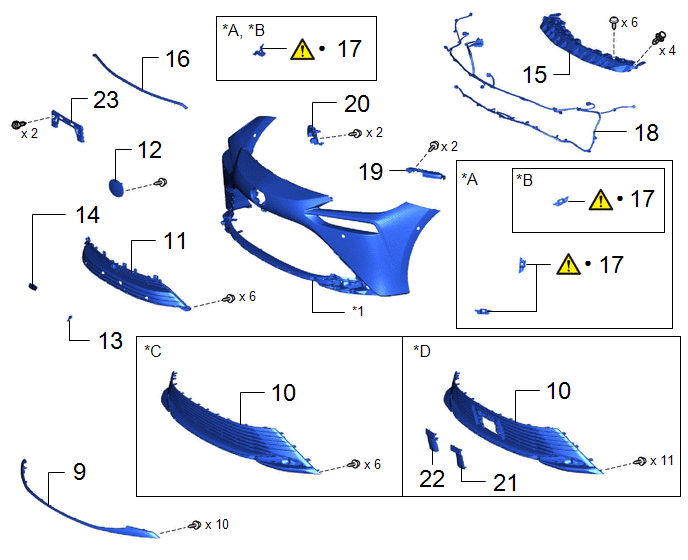

Fig 2: Front Bumper Reassembly Components [11/2021 - 12/2023] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9	LOWER RADIATOR GRILLE MOULDING	53123D	-	-	-
10	LOWER RADIATOR GRILLE SUB-ASSEMBLY	53102A	-	-	-
11	RADIATOR GRILLE SUB-ASSEMBLY	53101	-	-	-
12	RADIATOR GRILLE EMBLEM	75311	-	-	-
13	LOWER RADIATOR GRILLE RH	53127A	-	-	-
14	FRONT BUMPER HOLE COVER	52127C	-	-	-
15	RADIATOR GRILLE BRACKET	53115H	-	-	-
16	HOOD TO FRONT END PANEL SEAL	53395E	-	-	-
17	FRONT ULTRASONIC SENSOR CLIP	89348X	See step 17	-	-
18	FRONT NO. 4 COMPARTMENT WIRE	82114C	-	-	-
19	FRONT BUMPER EXTENSION LH	52113D	-	-	-
20	FRONT BUMPER EXTENSION RH	52112D	-	-	-
21	RADIATOR GRILLE FINISH PLATE LH	53122D	-	-	-
22	RADIATOR GRILLE FINISH PLATE RH	53121G	-	-	-
23	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114B	-	-	-

*A	w/ Parking Support Brake System	*B	w/ Advanced Park
*C	w/o Advanced Drive	*D	w/ Advanced Drive
*1	FRONT BUMPER COVER	-	-
•	Non-reusable part	-	-

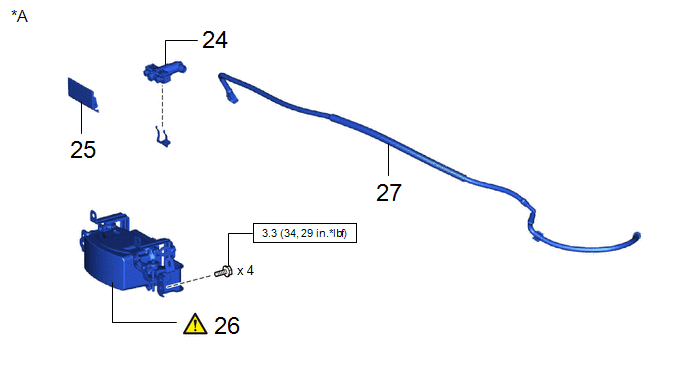

Fig 3: Front Bumper Reassembly Components With Torque Specifications [11/2021 - 12/2023] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24	FRONT LIDAR CLEANER NOZZLE	881D5	-	-	-
25	FRONT LIDAR CLEANER COVER	881D7	-	-	-
26	FRONT LIDAR ADVANCED DRIVE SENSOR ASSEMBLY	881D0	See step 26	-	-
27	FRONT NO. 2 LIDAR CLEANER HOSE SUB-ASSEMBLY	881D6A	-	-	-

*A	w/ Advanced Drive	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

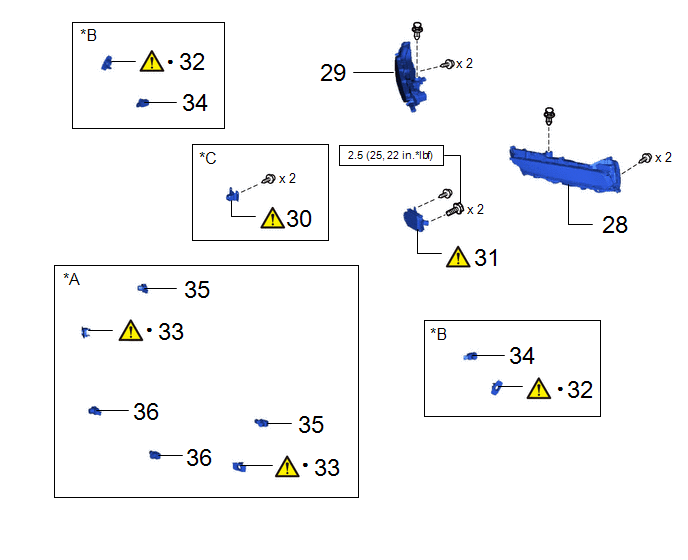

Fig 4: Front Bumper Reassembly Components With Torque Specifications [11/2021 - 12/2023] (4 Of 4)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28	FRONT TURN SIGNAL LIGHT ASSEMBLY LH	81520	-	-	-
29	FRONT TURN SIGNAL LIGHT ASSEMBLY RH	81510	-	-	-
30	FRONT TELEVISION CAMERA ASSEMBLY	86790B	See step 30	-	-
31	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	See step 31	-	-
32	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F	See step 32	-	-
33	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 33	-	-
34	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
35	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
36	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-

*A	w/ Parking Support Brake System	*B	w/ Advanced Park
*C	w/ Panoramic View Monitor System	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
