Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

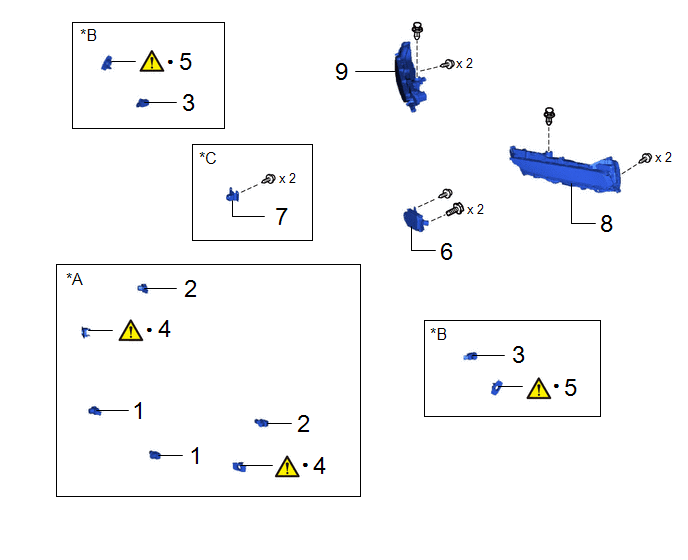

Fig 1: Front Bumper Disassembly Components [11/2020 - 11/2021] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
2	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
3	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
4	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D	See step 4	-	-
5	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F	See step 5	-	-
6	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	88211B	-	-	-
7	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
8	FRONT TURN SIGNAL LIGHT ASSEMBLY LH	81520	-	-	-
9	FRONT TURN SIGNAL LIGHT ASSEMBLY RH	81510	-	-	-

*A	w/ Parking Support Brake System	*B	w/ Advanced Park
*C	w/ Panoramic View Monitor System	-	-
•	Non-reusable part	-	-

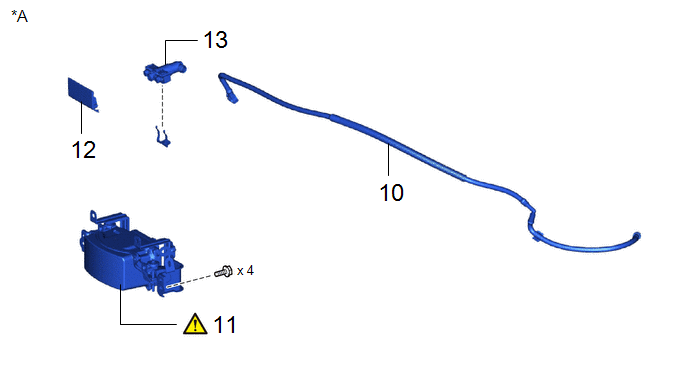

Fig 2: Front Bumper Disassembly Components [11/2020 - 11/2021] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10	FRONT NO. 2 LIDAR CLEANER HOSE SUB-ASSEMBLY	881D6A	-	-	-
11	FRONT LIDAR ADVANCED DRIVE SENSOR ASSEMBLY	881D0	See step 11	-	-
12	FRONT LIDAR CLEANER COVER	881D7	-	-	-
13	FRONT LIDAR CLEANER NOZZLE	881D5	-	-	-

w/ Advanced Drive

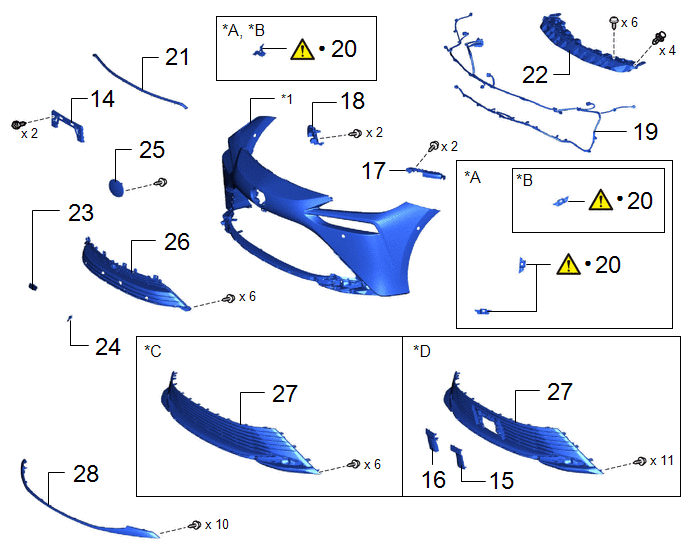

Fig 3: Front Bumper Disassembly Components [11/2020 - 11/2021] (3 Of 4)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14	FRONT BUMPER EXTENSION MOUNTING BRACKET	52114B	-	-	-
15	RADIATOR GRILLE FINISH PLATE LH	53122D	-	-	-
16	RADIATOR GRILLE FINISH PLATE RH	53121G	-	-	-
17	FRONT BUMPER EXTENSION LH	52113D	-	-	-
18	FRONT BUMPER EXTENSION RH	52112D	-	-	-
19	FRONT NO. 4 COMPARTMENT WIRE	82114C	-	-	-
20	FRONT ULTRASONIC SENSOR CLIP	89348X	See step 20	-	-
21	HOOD TO FRONT END PANEL SEAL	53395E	-	-	-
22	RADIATOR GRILLE BRACKET	53115H	-	-	-
23	FRONT BUMPER HOLE COVER	52127C	-	-	-
24	LOWER RADIATOR GRILLE RH	53127A	-	-	-
25	RADIATOR GRILLE EMBLEM	75311	-	-	-
26	RADIATOR GRILLE SUB-ASSEMBLY	53101	-	-	-
27	LOWER RADIATOR GRILLE SUB-ASSEMBLY	53102A	-	-	-
28	LOWER RADIATOR GRILLE MOULDING	53123D	-	-	-

*A	w/ Parking Support Brake System	*B	w/ Advanced Park
*C	w/o Advanced Drive	*D	w/ Advanced Drive
*1	FRONT BUMPER COVER	-	-
•	Non-reusable part	-	-

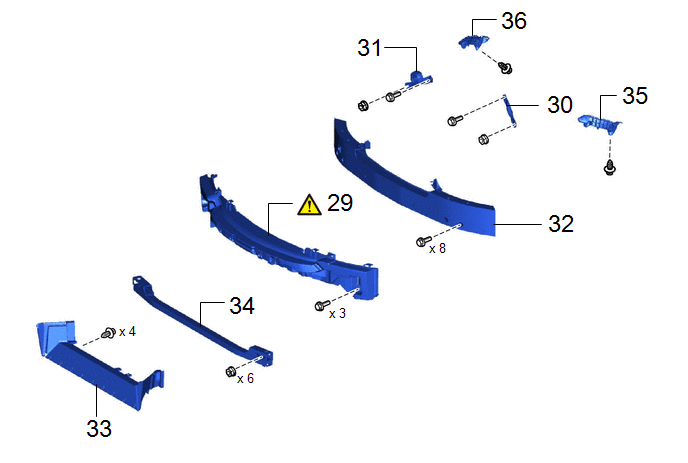

Fig 4: Front Bumper Disassembly Components [11/2020 - 11/2021] (4 Of 4)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29	FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY	-	See step 29	-	-
30	UPPER RADIATOR SUPPORT BRACE LH	51466	-	-	-
31	UPPER RADIATOR SUPPORT BRACE RH	51465	-	-	-
32	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	52021	-	-	-
33	LOWER RADIATOR AIR GUIDE PLATE	16683A	-	-	-
34	FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY	52029B	-	-	-
35	FRONT BUMPER SIDE SUPPORT LH	52116A	-	-	-
36	FRONT BUMPER SIDE SUPPORT RH	52115A	-	-	-
