Reassembly [11/2020 - 12/2022]: Procedure

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

   -

   -

   1. Clean the surface of the rear door.

      1. Remove any remaining double-sided tape from the rear door.

      2. Wipe off any adhesive residue with cleaner.

      3. Using a heat light, heat a new rear door No. 5 weatherstrip and the rear door surface.

      WARNING:

      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      Standard Value

      Part	Temperature
      Rear door No. 5 weatherstrip.	20 to 30°C (68 to 86°F)

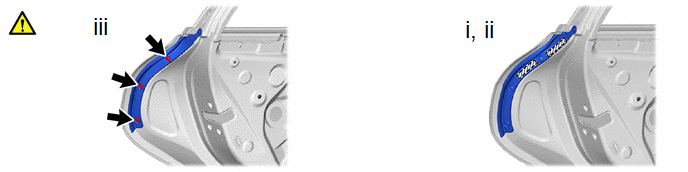

   2. Remove the peeling paper from the face of the rear door No. 5 weatherstrip.
   3. Attach the clips and install the rear door No. 5 weatherstrip.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Nut

   1. When reusing a bolt:

      1. Clean the threads of the bolt.

      2. Apply adhesive to the threads of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

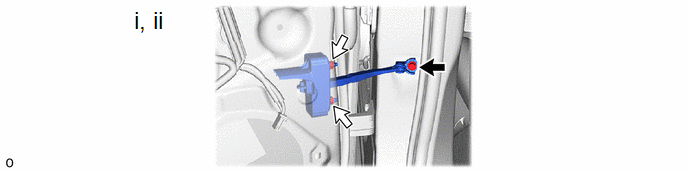

   2. Install the rear door check assembly with a bolt and 2 nuts.

      Bolt

      Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

      Nut

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

1. When re-using the rear door lock assembly:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt

   Connector

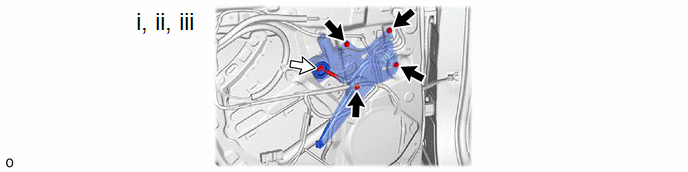

   1. Apply MP grease to the sliding parts of the rear door window regulator sub-assembly.
   2. Install the rear door window regulator sub-assembly with the 4 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   3. Connect the connector.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

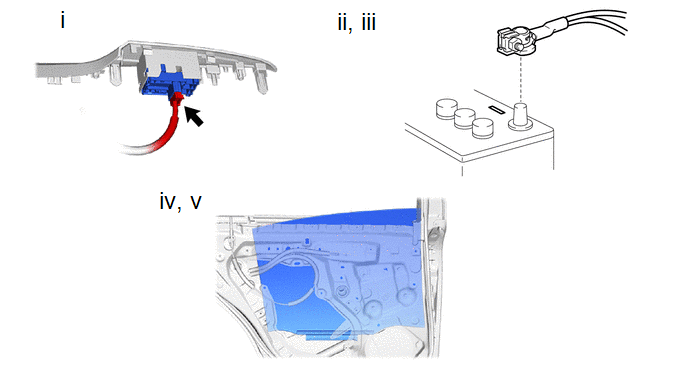

   1. Connect the connector to the rear power window regulator switch.
   2. Connect the cable to the negative (-) battery terminal.
   3. Turn the ignition switch on.
   4. Move the rear door glass sub-assembly so that the door glass installation position can be seen.
   5. Turn the ignition switch off.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      • If an SRS part is accidentally deployed, it may cause a serious injury.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Disconnect the connector from the rear pawer window regulator switch.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

   -

   -

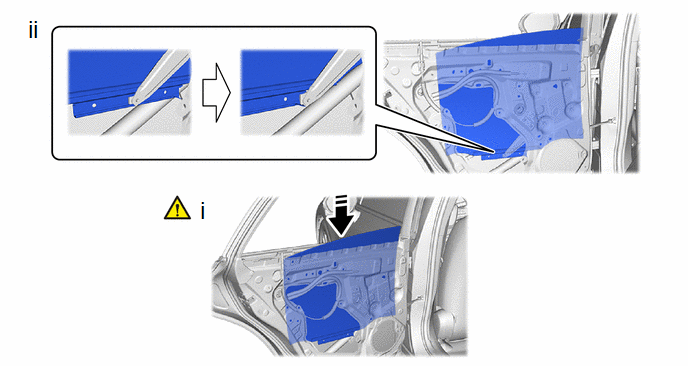

   1. Insert the rear door glass sub-assembly into the rear door panel as shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly LH.

   2. Install the rear door glass sub-assembly to the rear door window regulator sub-assembly.

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

Refer to INSTALLATION [11/2020 - 12/2022]

Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]

Refer to INITIALIZATION [11/2020 - 12/2023]

Refer to OPERATION CHECK [11/2020 - 12/2023]

Refer to OPERATION CHECK [11/2020 - 12/2023]
