COMPONENTS (REASSEMBLY)

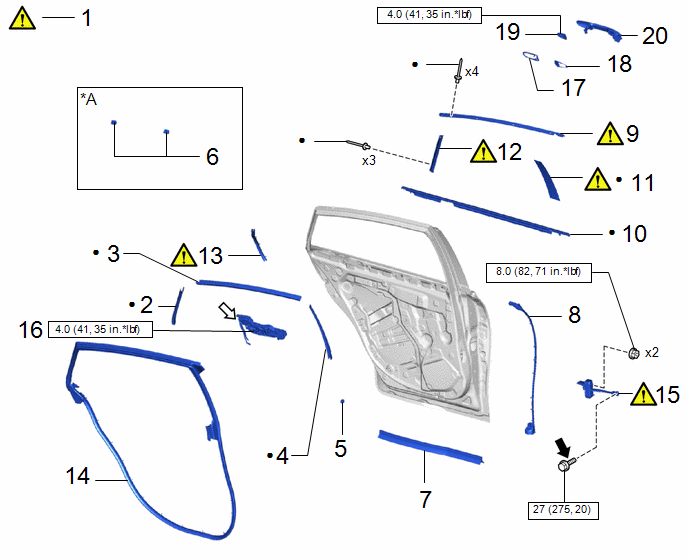

Fig 1: Rear Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REPAIR INSTRUCTION	-	See step 1
2	REAR INNER BLACK OUT TAPE	75954A	-	-	-
3	REAR DOOR STRIPE OUTSIDE	75988E	-	-	-
4	REAR DOOR LOWER OUTSIDE STRIPE	75978H	-	-	-
5	REAR DOOR PANEL CUSHION	67003C	-	-	-
6	REAR DOOR CURTAIN HOOK (w/ Rear Door Sunshade)	65923E	-	-	-
7	REAR DOOR NO. 2 WEATHERSTRIP	67888F	-	-	-
8	REAR DOOR NO. 3 WEATHERSTRIP	67896	-	-	-
9	REAR DOOR UPPER WINDOW FRAME MOULDING	75764A	See step 9	-	-
10	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-
11	REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)	75762B	See step 11	-	-
12	REAR DOOR REAR WINDOW FRAME MOULDING	75766A	See step 12	-	-
13	REAR DOOR NO. 5 WEATHERSTRIP	67874C	See step 13	-	-
14	REAR DOOR WEATHERSTRIP	67872	-	-	-
15	REAR DOOR CHECK ASSEMBLY	68640A	See step 15	-	-
16	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	69204A	-	-	-
17	REAR DOOR OUTSIDE HANDLE REAR PAD	69242G	-	-	-
18	REAR DOOR OUTSIDE HANDLE FRONT PAD	69241G	-	-	-
19	REAR DOOR OUTSIDE HANDLE COVER	69227L	-	-	-
20	REAR DOOR OUTSIDE HANDLE ASSEMBLY	69240	-	-	-

*A	w/ Rear Door Sunshade	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324		MP grease
*	Precoated part	-	-

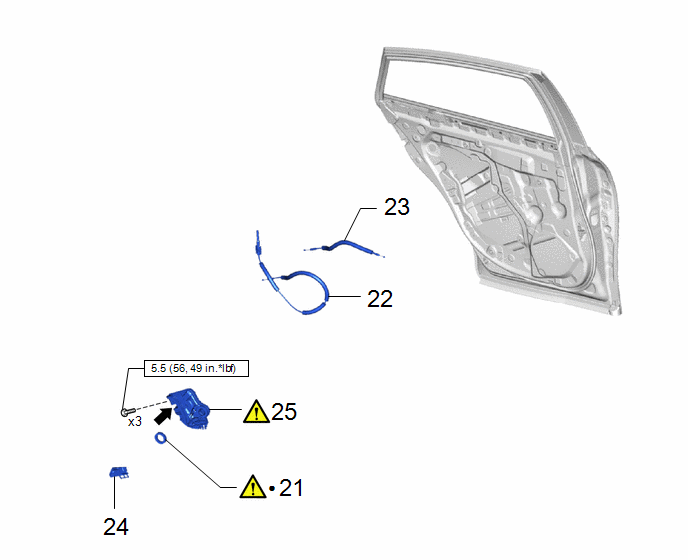

Fig 2: Rear Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21	DOOR LOCK WIRING HARNESS SEAL	69318D	See step 21	-	-
22	REAR DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE	69770E	-	-	-
23	REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE	69730M	-	-	-
24	REAR DOOR LOCK COVER SUB-ASSEMBLY	69038A	-	-	-
25	REAR DOOR LOCK WITH MOTOR ASSEMBLY	69060A	See step 25	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

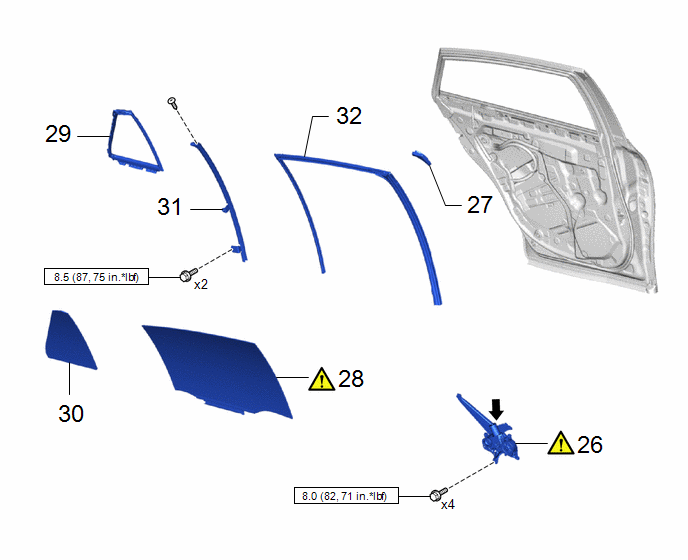

Fig 3: Rear Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26	REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY	69804	See step 26	-	-
27	REAR DOOR FRAME GARNISH	67674B	-	-	-
28	REAR DOOR GLASS SUB-ASSEMBLY	68104	See step 28	-	-
29	REAR DOOR QUARTER WINDOW WEATHERSTRIP	68189	-	-	-
30	REAR DOOR QUARTER WINDOW GLASS	68124B	-	-	-
31	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY	67408E	-	-	-
32	REAR DOOR GLASS RUN	68152C	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

MP grease

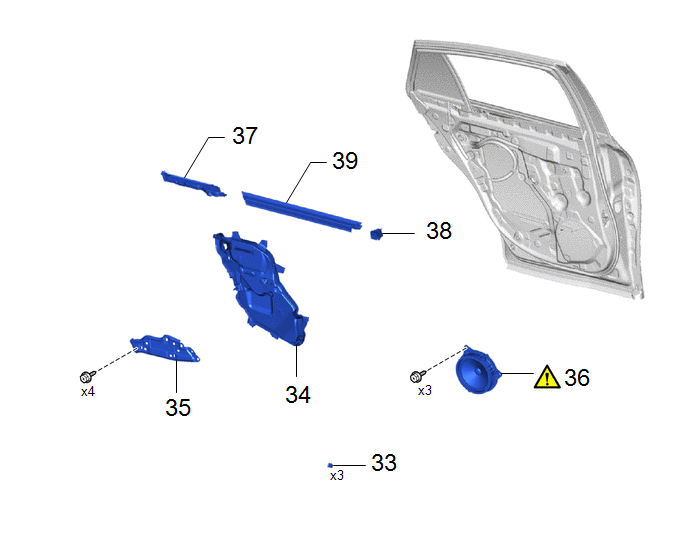

Fig 4: Rear Door Reassembly Components [11/2020 - 12/2022] (4 Of 5)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
33	HOLE PLUG	-	-	-	-
34	REAR DOOR SERVICE HOLE COVER	67842E	-	-	-
35	REAR DOOR ARMREST SET BRACKET	67646A	-	-	-
36	REAR SPEAKER ASSEMBLY	86160B	See step 36	-	-
37	REAR DOOR BELT REAR SEAL	-	-	-	-
38	REAR DOOR BELT FRONT SEAL	68197A	-	-	-
39	REAR DOOR GLASS INNER WEATHERSTRIP	68174A	-	-	-

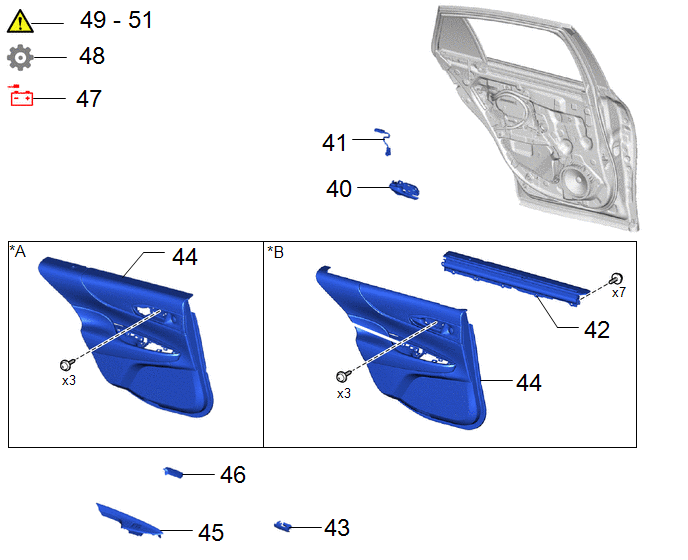

Fig 5: Rear Door Reassembly Components [11/2020 - 12/2022] (5 Of 5)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
40	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY	69206C	-	-	-
41	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-
42	REAR CURTAIN SUB-ASSEMBLY (w/ Rear Door Sunshade)	65908D	-	-	-
43	COURTESY LIGHT ASSEMBLY	81230	-	-	-
44	REAR DOOR TRIM BOARD SUB-ASSEMBLY	67604	-	-	-
45	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	-	-	-
46	REAR DOOR INSIDE HANDLE BEZEL PLUG	69284D	-	-	-
47	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
48	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step 48
49	INITIALIZATION POWER WINDOW CONTROL SYSTEM	-	See step 49	-	-
50	CHECK POWER WINDOW OPERATION	-	See step 50	-	-
51	CHECK DOOR LOCK OPERATION	-	See step 51	-	-

w/o Rear Door Sunshade

w/ Rear Door Sunshade

HINT:
