Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  1 [11/2020 - 12/2022], or see step  1 [12/2022 - ]
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    See step  2 [11/2020 - 12/2022], or see step  2 [12/2022 - ]

  3. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3

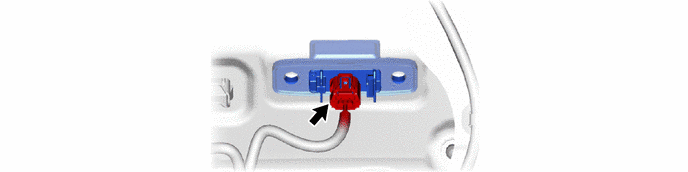

  4. REMOVE LUGGAGE ELECTRICAL KEY SWITCH
    1. GTY1018183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
