Caution / Notice / Hint

COMPONENTS (REMOVAL)

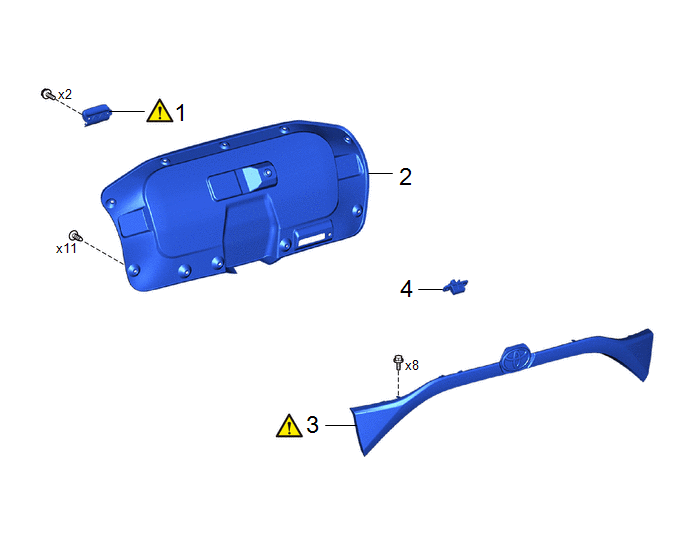

Fig 1: Luggage Electrical Key Switch Removal Components

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	LUGGAGE COMPARTMENT DOOR ASSIST GRIP	74649	See step 1	-	-
2	LUGGAGE COMPARTMENT DOOR COVER	64719A	-	-	-
3	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801A	See step 3	-	-
4	LUGGAGE ELECTRICAL KEY SWITCH	84945A	-	-	-
