Reassembly [11/2020 - 12/2023]: Procedure

  1. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure for the opposite side.

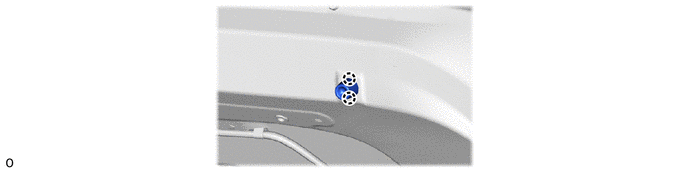

    1. GTY1016604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the claws and install the luggage compartment door cushion.
  2. INSTALL LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY LH

    HINT:

    Use the same procedure for both the RH and LH sides.

  3. INSTALL LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not perform work if the trunk panel (luggage compartment door) is not securely supported.

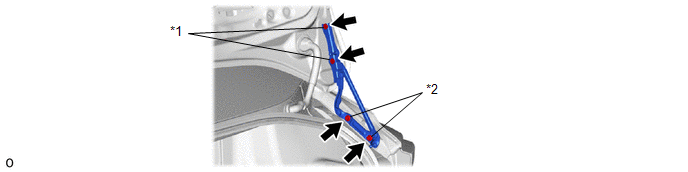

    1. GTY1162461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bolt (A) *2 Bolt (B)
      1. Install the 2 luggage door hinge bolts, 2 bolts and luggage compartment door hinge assembly RH.

        Bolt (A)

        Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

        Bolt (B)

        Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

  4. INSTALL LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

    HINT:

    Use the same procedure for both the RH and LH sides.

  5. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

    See step  1

  6. INSTALL TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 6

  7. INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 7

  8. INSTALL LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  11. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for both the RH and LH sides.

  12. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
  13. INSTALL LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
  14. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  15. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY (w/ Easy Closer)

    Refer to PROCEDURE - Step 2

  16. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Easy Closer)

    Refer to PROCEDURE - Step 1

  17. INSTALL LUGGAGE COMPARTMENT DOOR COVER
  18. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
  19. INSPECT EASY CLOSER (w/ Easy Closer)

    Refer to OPERATION CHECK [11/2020 - ]

  20. CHECK DOOR LOCK OPERATION

    Refer to OPERATION CHECK [11/2020 - 12/2023]
