Removal [11/2020 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT UPPER COVER LH

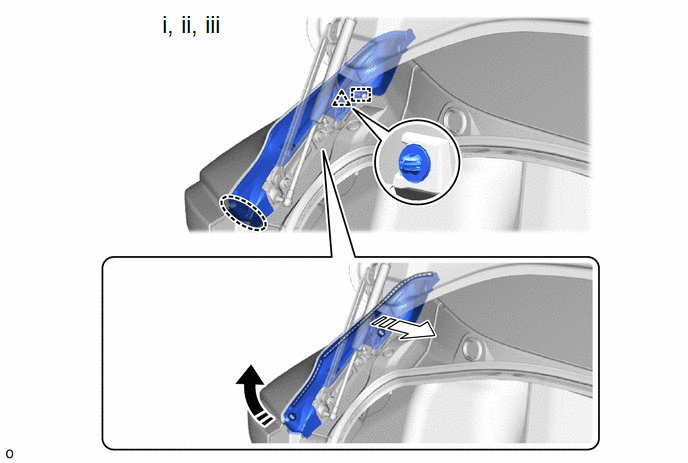

    1. GTY1017302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape Place Hands Here
      Remove in this Direction (1) Remove in this Direction (2)
      1. Heat the No. 1 luggage compartment upper cover LH using a heat light.
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY812772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light

        Standard Value

        Part Temperature
        No. 1 luggage compartment upper cover LH 20 to 30°C (68 to 86°F)
      2. Using a clip remover, disengage the clip.
      3. Remove the double-sided tape and No. 1 luggage compartment upper cover LH as shown in the illustration.
  2. REMOVE NO. 1 LUGGAGE COMPARTMENT UPPER COVER RH

    HINT:

    Use the same procedure for both the RH and LH sides.

  3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH

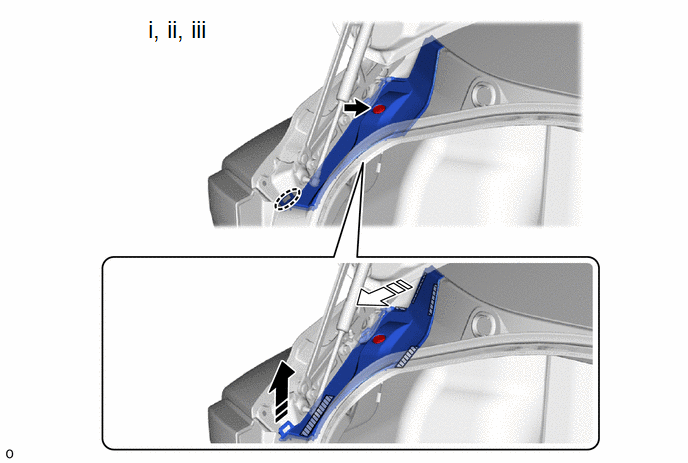

    1. GTY1016692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape Place Hands Here
      Remove in this Direction (1) Remove in this Direction (2)
      1. Heat the No. 1 luggage compartment door hinge cover LHusing a heat light.
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY812772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light

        Standard Value

        Part Temperature
        No. 1 luggage compartment door hinge cover LH 20 to 30°C (68 to 86°F)
      2. Remove the clip.
      3. Remove the double-sided tape and No. 1 luggage compartment door hinge cover LH as shown in the illustration.
  4. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    HINT:

    Use the same procedure for both the RH and LH sides.

  5. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    See step  2 [11/2020 - 11/2021], or see step  2 [11/2021 - 12/2022], or see step  2 [12/2022 - 12/2023], or see step  2 [12/2023 - ]

  6. REMOVE REAR FLOOR FINISH PLATE

    See step  4 [11/2020 - 11/2021], or see step  4 [11/2021 - 12/2022], or see step  4 [12/2022 - 12/2023], or see step  4 [12/2023 - ]

  7. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When removing, make sure that non-drying sealer does not adhere to the body and luggage compartment door.

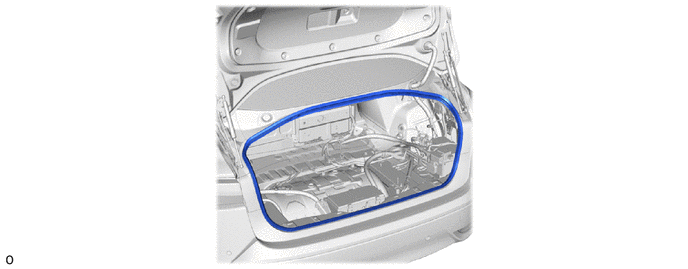

    1. GTY1017649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
