COMPONENTS (REMOVAL)

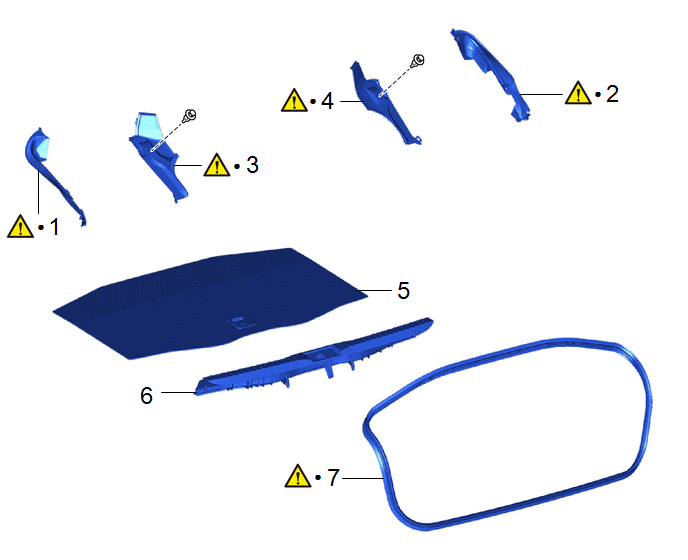

Fig 1: Luggage Compartment Door Weatherstrip Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	NO. 1 LUGGAGE COMPARTMENT UPPER COVER LH	64714N	See step 1	-	-
2	NO. 1 LUGGAGE COMPARTMENT UPPER COVER RH	64713J	See step 2	-	-
3	LUGGAGE COMPARTMENT DOOR HINGE COVER LH	64572	See step 3	-	-
4	LUGGAGE COMPARTMENT DOOR HINGE COVER RH	64571B	See step 4	-	-
5	LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY	64701	-	-	-
6	REAR FLOOR FINISH PLATE	58387	-	-	-
7	LUGGAGE COMPARTMENT DOOR WEATHERSTRIP	64461	See step 7	-	-

•

Non-reusable part
