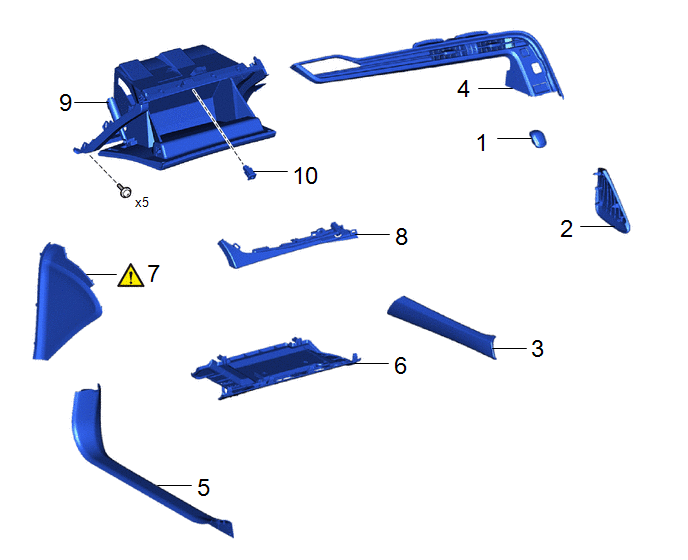

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | - | - | - |
| 2 | NO. 1 CONSOLE UPPER PANEL GARNISH | 58833B | - | - | - |
| 3 | NO. 2 CONSOLE UPPER PANEL GARNISH | 58834B | - | - | - |
| 4 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | 55470 | - | - | - |
| 5 | FRONT DOOR SCUFF PLATE RH | 67911B | - | - | - |
| 6 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
| 7 | NO. 2 INSTRUMENT SIDE PANEL | 55318F | See step 7 | - | - |
| 8 | LOWER INSTRUMENT CLUSTER FINISH PANEL GARNISH | 55479D | - | - | - |
| 9 | GLOVE COMPARTMENT DOOR ASSEMBLY | 55550 | - | - | - |
| 10 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY | 84840C | - | - | - |
