COMPONENTS (REMOVAL)

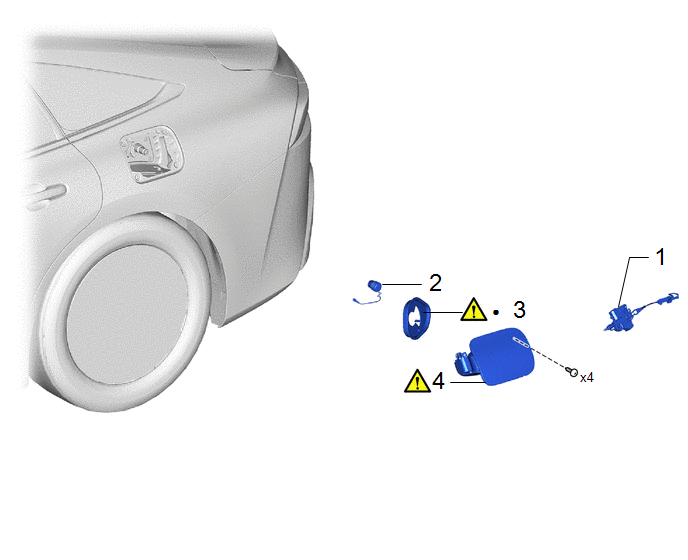

Fig 1: Fuel Lid Opener Unit Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FUEL LID WITH MOTOR LOCK ASSEMBLY	77030A	-	-	-
2	HYDROGEN INLET RECEPTACLE CAP	77AE2	-	-	-
4	FUEL TANK FILLER PIPE SHIELD	77291A	See step 3	-	-
5	FUEL FILLER OPENING LID SUB-ASSEMBLY	77305A	See step 4	-	-

•

Non-reusable part
