Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

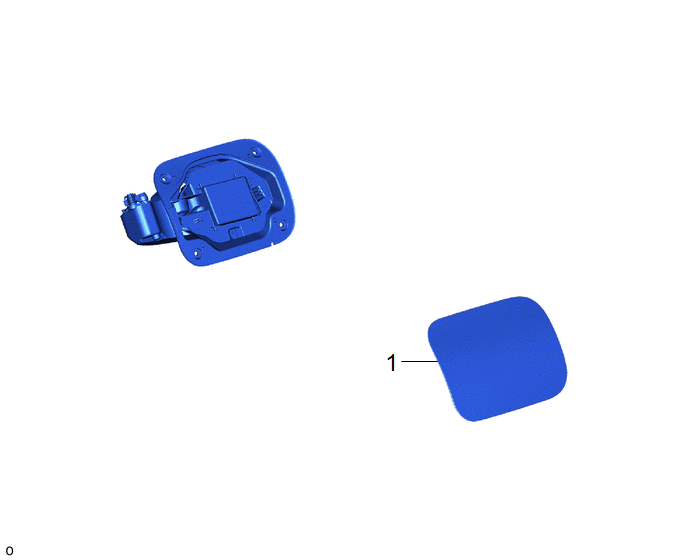

Fig 1: Fuel Lid Opener Unit Reassembly Components
GTY1017708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 FUEL FILLER OPENING LID ASSEMBLY 77350 - - -
