Disassembly [11/2020 - ]: Procedure

  1. REMOVE FUEL FILLER OPENING LID ASSEMBLY

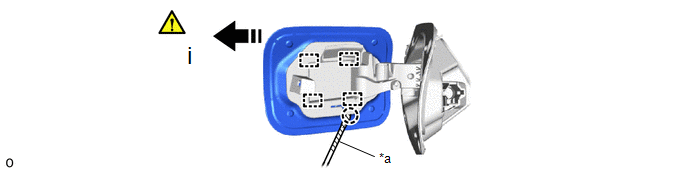

    1. GTY1016569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape - -
      Remove in this Direction - -
      1. Using a thin-bladed screwdriver with its tip wrapped in protective tape, disengage the claw and guides to remove the fuel filler opening lid assembly.
