Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    See step  2 [11/2020 - 11/2021], or see step  2 [11/2021 - 12/2022], or see step  2 [12/2022 - 12/2023], or see step  2 [12/2023 - ]

  2. REMOVE TOOL BOX

    See step  3 [11/2020 - 11/2021], or see step  3 [11/2021 - 12/2022], or see step  3 [12/2022 - 12/2023], or see step  3 [12/2023 - ]

  3. REMOVE REAR FLOOR FINISH PLATE

    See step  4 [11/2020 - 11/2021], or see step  4 [11/2021 - 12/2022], or see step  4 [12/2022 - 12/2023], or see step  4 [12/2023 - ]

  4. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    See step  5 [11/2020 - 11/2021], or see step  5 [11/2021 - 12/2022], or see step  5 [12/2022 - 12/2023], or see step  5 [12/2023 - ]

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH

    See step  6 [11/2020 - 11/2021], or see step  6 [11/2021 - 12/2022], or see step  6 [12/2022 - 12/2023], or see step  6 [12/2023 - ]

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    See step  7 [11/2020 - 11/2021], or see step  7 [11/2021 - 12/2022], or see step  7 [12/2022 - 12/2023], or see step  7 [12/2023 - ]

  7. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH

    See step  8 [11/2020 - 11/2021], or see step  8 [11/2021 - 12/2022], or see step  8 [12/2022 - 12/2023], or see step  8 [12/2023 - ]

  8. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

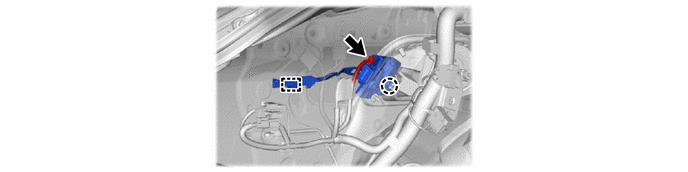

    1. GTY1210076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
