Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

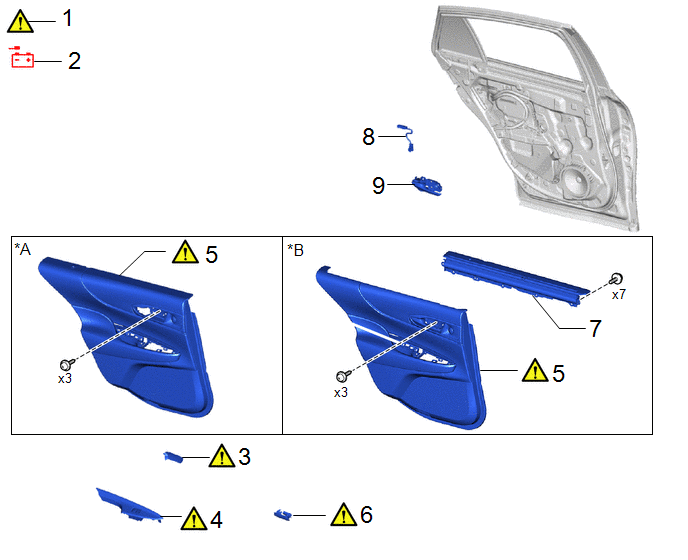

Fig 1: Rear Door Disassembly Components [11/2020 - 11/2021] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	PRECAUTION	-	See step 1	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	REAR DOOR INSIDE HANDLE BEZEL PLUG	69284D	See step 3	-	-
4	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	See step 4	-	-
5	REAR DOOR TRIM BOARD SUB-ASSEMBLY	67604	See step 5	-	-
6	COURTESY LIGHT ASSEMBLY	81230	See step 6	-	-
7	REAR CURTAIN SUB-ASSEMBLY (w/ Rear Door Sunshade)	65908D	-	-	-
8	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-
9	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY	69206C	-	-	-

w/o Rear Door Sunshade

w/ Rear Door Sunshade

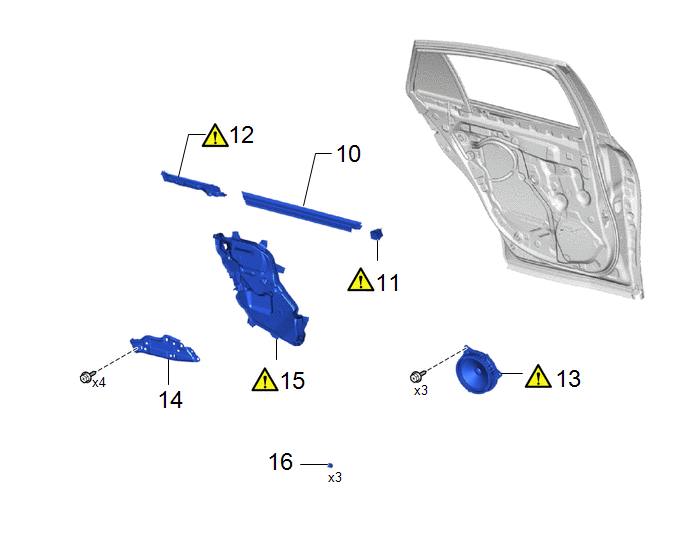

Fig 2: Rear Door Disassembly Components [11/2020 - 11/2021] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10	REAR DOOR GLASS INNER WEATHERSTRIP	68174A	-	-	-
11	REAR DOOR BELT FRONT SEAL	68197A	See step 11	-	-
12	REAR DOOR BELT REAR SEAL	68199	See step 12	-	-
13	REAR SPEAKER ASSEMBLY	86160B	See step 13	-	-
14	REAR DOOR ARMREST SET BRACKET	67646A	-	-	-
15	REAR DOOR SERVICE HOLE COVER	67842E	See step 15	-	-
16	HOLE PLUG	-	-	-	-

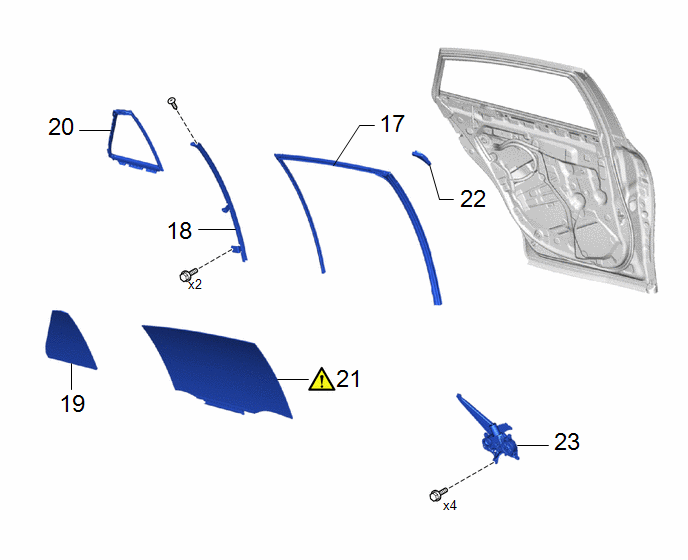

Fig 3: Rear Door Disassembly Components [11/2020 - 11/2021] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17	REAR DOOR GLASS RUN	68152C	-	-	-
18	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY	67408E	-	-	-
19	REAR DOOR QUARTER WINDOW GLASS	68124B	-	-	-
20	REAR DOOR QUARTER WINDOW WEATHERSTRIP	68189	-	-	-
21	REAR DOOR GLASS SUB-ASSEMBLY	68104	See step 21	-	-
22	REAR DOOR FRAME GARNISH	67674B	-	-	-
23	REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY	69804	-	-	-

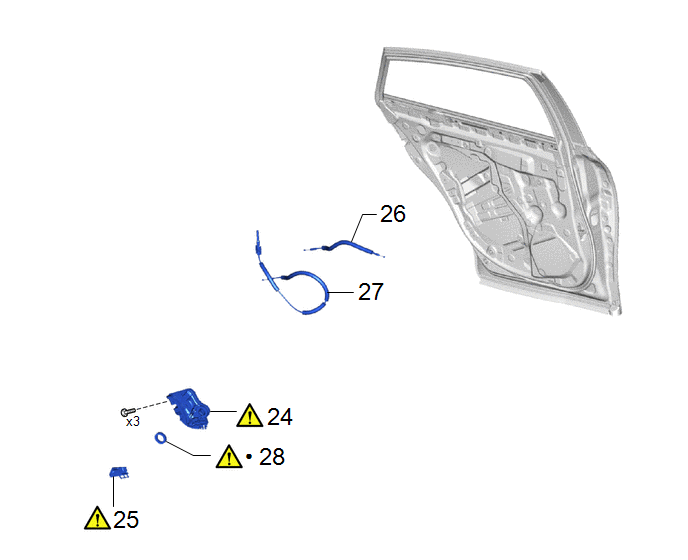

Fig 4: Rear Door Disassembly Components [11/2020 - 11/2021] (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24	REAR DOOR LOCK WITH MOTOR ASSEMBLY	69060A	See step 24	-	-
25	REAR DOOR LOCK COVER SUB-ASSEMBLY	69038A	See step 25	-	-
26	REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE	69730M	-	-	-
27	REAR DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE	69770E	-	-	-
28	DOOR LOCK WIRING HARNESS SEAL	69318D	See step 28	-	-

•

Non-reusable part

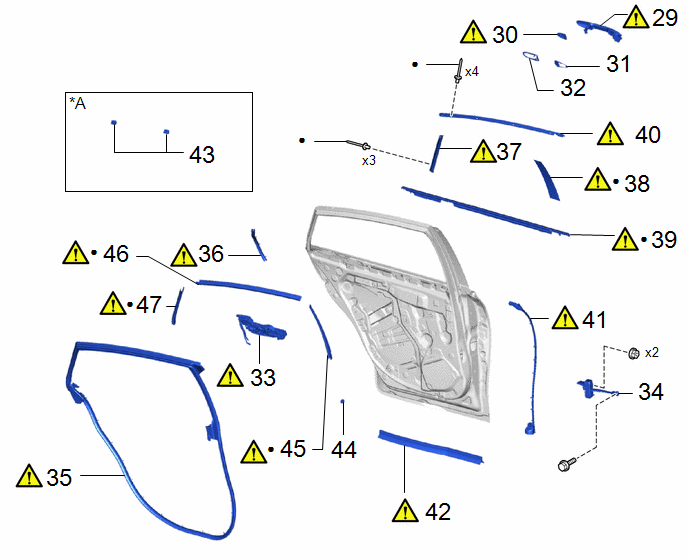

Fig 5: Rear Door Disassembly Components [11/2020 - 11/2021] (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29	REAR DOOR OUTSIDE HANDLE ASSEMBLY	69240	See step 29	-	-
30	REAR DOOR OUTSIDE HANDLE COVER	69227L	See step 30	-	-
31	REAR DOOR OUTSIDE HANDLE FRONT PAD	69241G	-	-	-
32	REAR DOOR OUTSIDE HANDLE REAR PAD	69242G	-	-	-
33	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	69204A	See step 33	-	-
34	REAR DOOR CHECK ASSEMBLY	68640A	-	-	-
35	REAR DOOR WEATHERSTRIP	67872	See step 35	-	-
36	REAR DOOR NO. 5 WEATHERSTRIP	67874C	See step 36	-	-
37	REAR DOOR REAR WINDOW FRAME MOULDING	75766A	See step 37	-	-
38	REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)	75762B	See step 38	-	-
39	REAR DOOR BELT MOULDING ASSEMBLY	75740	See step 39	-	-
40	REAR DOOR UPPER WINDOW FRAME MOULDING	75764A	See step 40	-	-
41	REAR DOOR NO. 3 WEATHERSTRIP	67896	See step 41	-	-
42	REAR DOOR NO. 2 WEATHERSTRIP	67888F	See step 42	-	-
43	REAR DOOR CURTAIN HOOK	-	-	-	-
44	REAR DOOR PANEL CUSHION	67003C	-	-	-
45	REAR DOOR LOWER OUTSIDE STRIPE	75978H	See step 45	-	-
46	REAR DOOR STRIPE OUTSIDE	75988E	See step 46	-	-
47	REAR INNER BLACK OUT TAPE	75954A	See step 47	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door disassembly/reassembly are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative (-) auxiliary battery terminal	Memorize steering angle neutral point	Parking assist monitor system	Refer to INITIALIZATION [11/2020 - 12/2022]
	Memorize steering angle neutral point	Panoramic view monitor system	Refer to INITIALIZATION [11/2020 - 12/2022]
Power window regulator motor assembly RH (Rear right seat) Power window regulator motor assembly LH (Rear left seat) Rear door window regulator sub-assembly (RH, LH) Rear door glass (RH, LH) or rear door glass run (RH, LH) Because of assembly adjustment, etc., causing sliding change, improper reversal has occurred	Power window system initialization	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to INITIALIZATION [11/2020 - 12/2023]

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system (for Mono camera type)	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	for Stereo Camera Type: - for Mono Camera Type: Refer to INITIALIZATION [11/2020 - 12/2023]
Lane tracing assist system (for Stereo camera type)
Pre-collision system (for Mono camera type)
Pre-collision system (for Stereo camera type)
Lighting system (EXT)
Advanced drive system	Drive the vehicle straight ahead at a vehicle speed of 35 km/h or higher for 30 seconds* or more.	-

*: This can be completed by doing this for 30 seconds continuously or for a total of 30 seconds intermittently.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
When removing the front door glass sub-assembly, move the front door glass sub-assembly to the lowest position before disconnecting the auxiliary battery negative (-) terminal.
