Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

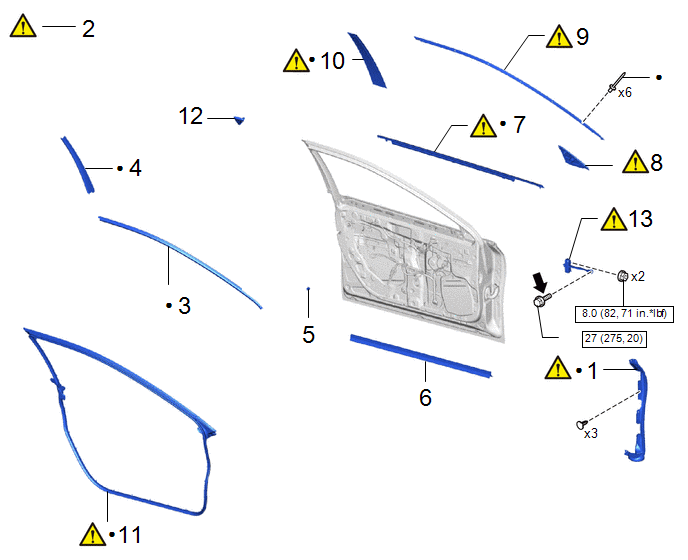

Fig 1: Front Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FRONT DOOR NO. 3 WEATHERSTRIP	67866F	See step  1	-	-
2	REPAIR INSTRUCTION	-	See step  2	-	-
3	FRONT DOOR NO. 4 STRIPE	75966B	-	-	-
4	FRONT DOOR NO. 3 STRIPE	75986B	-	-	-
5	FRONT DOOR PANEL CUSHION	67001A	-	-	-
6	FRONT DOOR NO. 2 WEATHERSTRIP	67864B	-	-	-
7	FRONT DOOR BELT MOULDING ASSEMBLY	75720	See step  7	-	-
8	FRONT DOOR FRONT LOWER FRAME UPPER COVER	67496C	See step  8	-	-
9	FRONT DOOR UPPER WINDOW FRAME MOULDING	75754A	See step  9	-	-
10	FRONT DOOR WINDOW FRAME MOULDING	75756D	See step  10	-	-
11	FRONT DOOR WEATHERSTRIP	67862	See step  11	-	-
12	UPPER DOOR FRAME GARNISH	67664	-	-	-
13	FRONT DOOR CHECK ASSEMBLY	68610	See step  13	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part

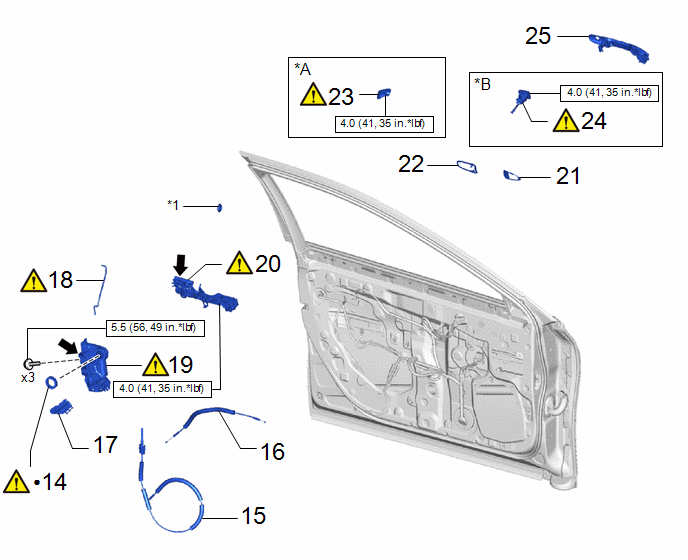

Fig 2: Front Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14	DOOR LOCK WIRING HARNESS SEAL	69318C	See step  14	-	-
15	FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE	69750E	-	-	-
16	FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE	69710D	-	-	-
17	FRONT DOOR LOCK COVER SUB-ASSEMBLY	69036A	-	-	-
18	FRONT DOOR LOCK OPEN ROD	69312	See step  18	-	-
19	FRONT DOOR LOCK WITH MOTOR ASSEMBLY	69040A	See step  19	-	-
20	FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	69202A	See step  20	-	-
21	FRONT DOOR OUTSIDE HANDLE REAR PAD	69242E	-	-	-
22	FRONT DOOR OUTSIDE HANDLE FRONT PAD	69241H	-	-	-
23	FRONT DOOR OUTSIDE HANDLE COVER	69510	See step  23	-	-
24	FRONT DOOR LOCK CYLINDER ASSEMBLY	-	See step  24	-	-
25	FRONT DOOR OUTSIDE HANDLE ASSEMBLY	69210	-	-	-

*A	for Front Passenger Side	*B	for Driver Side
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

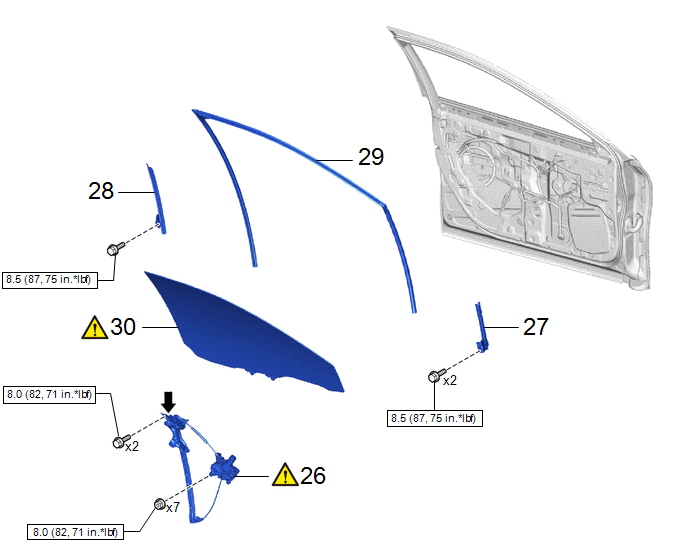

Fig 3: Front Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26	FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY	69802	See step  26	-	-
27	FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY	67402F	-	-	-
28	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY	67404F	-	-	-
29	FRONT DOOR GLASS RUN	68151C	-	-	-
30	FRONT DOOR GLASS SUB-ASSEMBLY	68102	See step  30	-	-

N.m (kgf/cm, ft.lbf): Specified torque

MP grease

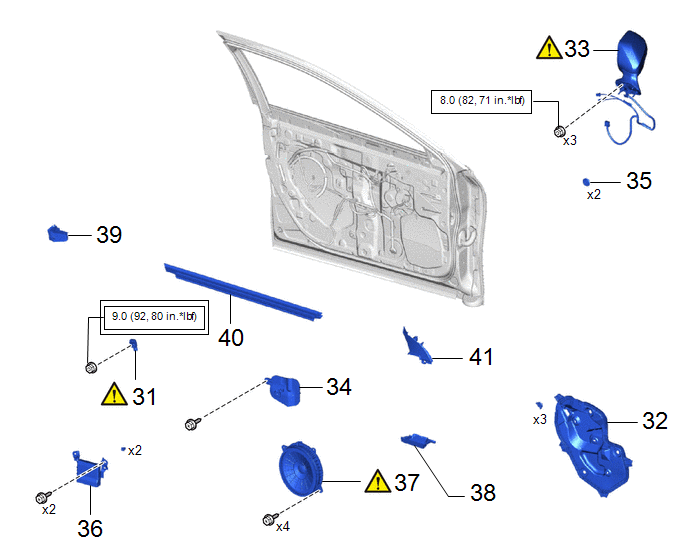

Fig 4: Front Door Reassembly Components With Torque Specifications [11/2020 - 12/2022] (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
31	SIDE AIRBAG PRESSURE SENSOR ASSEMBLY	8983AA	See step  31	-	-
32	FRONT DOOR SERVICE HOLE COVER	67832	-	-	-
33	OUTER REAR VIEW MIRROR ASSEMBLY	87940	See step  33	-	-
34	FRONT DOOR NO. 2 SERVICE HOLE COVER	67834	-	-	-
35	HOLE PLUG	-	-	-	-
36	MULTIPLEX NETWORK FRONT DOOR ECU	89223	-	-	-
37	FRONT NO. 1 SPEAKER ASSEMBLY	86160	See step  37	-	-
38	FRONT DOOR BELT FRONT SEAL	68193C	-	-	-
39	FRONT DOOR BELT REAR SEAL	68195B	-	-	-
40	FRONT DOOR GLASS INNER WEATHERSTRIP	68172A	-	-	-
41	FRONT DOOR LOWER FRAME BRACKET GARNISH	67492A	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque

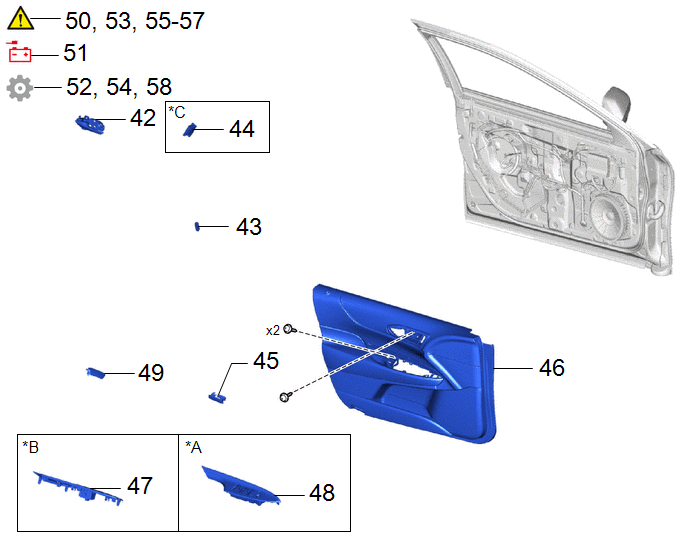

Fig 5: Front Door Reassembly Components [11/2020 - 12/2022] (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
42	FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY	69206B	-	-	-
43	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080M	-	-	-
44	SEAT MEMORY SWITCH	84927C	-	-	-
45	COURTESY LIGHT ASSEMBLY	81230	-	-	-
46	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-
47	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL	-	-	-	-
48	POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL	-	-	-	-
49	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284C	-	-	-
50	FITTING OF FRONT DOOR	-	See step  50	-	-
51	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
52	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step  52
53	SRS WARNING LIGHT	-	See step  53	-	-
54	INITIALIZATION POWER WINDOW CONTROL SYSTEM	-	-	-	See step  54
55	POWER WINDOW OPERATION	-	See step  55	-	-
56	DOOR LOCK OPERATION	-	See step  56	-	-
57	OUTER REAR VIEW MIRROR OPERATION	-	See step  57	-	-
58	PERFORM SYSTEM INITIALIZATION AND CALIBRATION	-	-	-	See step  58

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.
