Disassembly [11/2020 - ]: Procedure

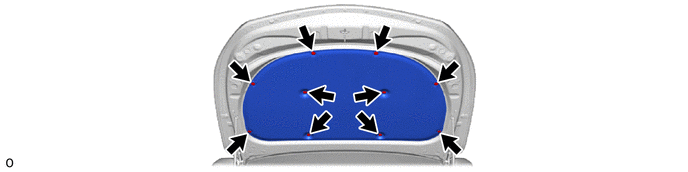

  1. REMOVE HOOD INSULATOR
    1. GTY1016727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

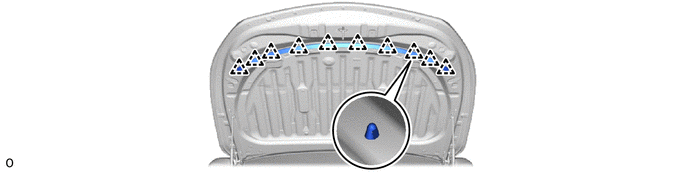

  2. REMOVE HOOD TO RADIATOR SUPPORT SEAL
    1. GTY1016714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD SUPPORT ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  1
  4. REMOVE HOOD SUPPORT ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Use the same procedure for both the RH and LH sides.
  5. REMOVE HOOD STAY BRACKET LH

    See step  2

  6. REMOVE HOOD STAY BRACKET RH
    1. Use the same procedure for both the RH and LH sides.
