Caution / Notice / Hint

COMPONENTS (REMOVAL)

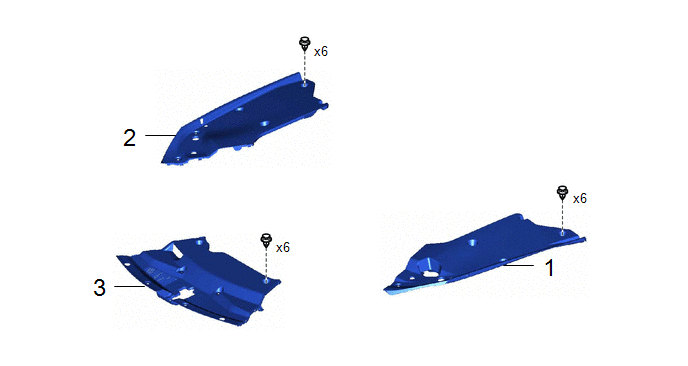

Fig 1: Hood Lock Control Cable Assembly Removal Components [11/2020 - 12/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	UPPER RADIATOR SUPPORT SEAL	53292A	-	-	-
2	RADIATOR COVER PLATE	53291B	-	-	-
3	LOWER RADIATOR AIR DEFLECTOR	53295	-	-	-

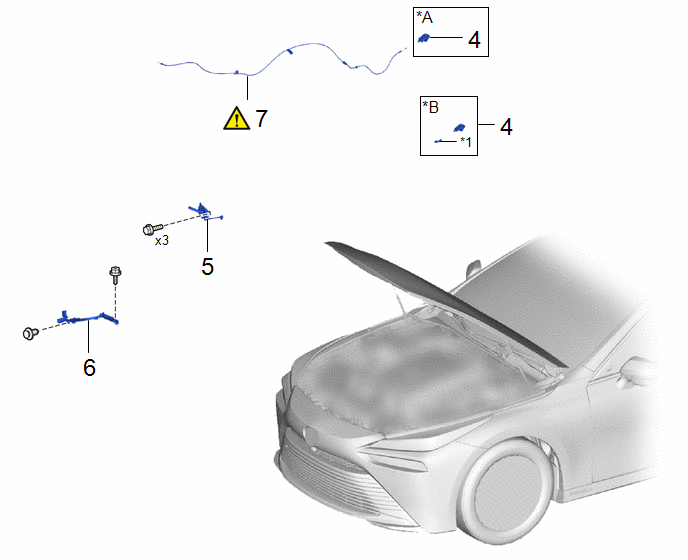

Fig 2: Hood Lock Control Cable Assembly Removal Components [11/2020 - 12/2022] (2 Of 2)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
5	HOOD LOCK ASSEMBLY	53510	-	-	-
6	HOOD LOCK CONTROL CABLE COVER	53629A	-	-	-
7	HOOD LOCK CONTROL CABLE ASSEMBLY	53630	See step 7	-	-

*A	for Type A	*B	for Type B
*1	HOOD LOCK CONTROL CABLE HOLDER	-	-
