Adjustment [11/2020 - 12/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [11/2020 - 12/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the auxiliary negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2020 - 11/2021] , or refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]

  3. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

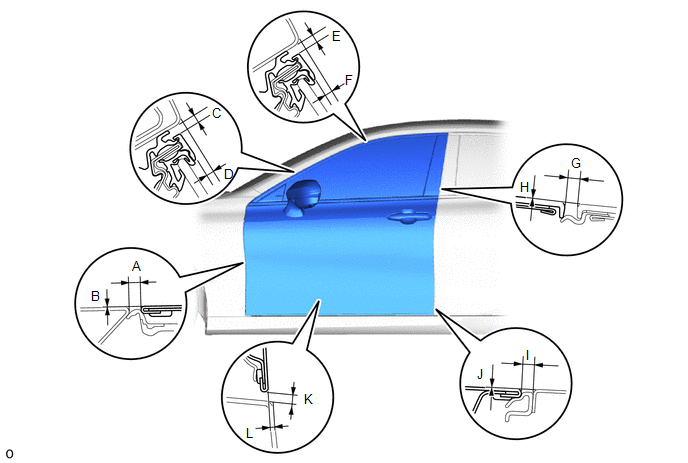

    1. Check that the clearance measurements of areas A to L are within the standard ranges.
      GTY1017454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Clearance

      Area Measurement Area Measurement
      A 2.8 to 6.8 mm (0.110 to 0.268 in.) B -1.5 to 1.5 mm (-0.059 to 0.059 in.)
      B 2.9 to 6.3 mm (0.114 to 0.248 in.) D 1.2 to 5.2 mm (0.047 to 0.205 in.)
      E 2.9 to 6.3 mm (0.114 to 0.248 in.) F 0.8 to 4.8 mm (0.031 to 0.189 in.)
      G 2.3 to 6.3 mm (0.091 to 0.248 in.) H -0.2 to 0.2 mm (-0.0079 to 0.0079 in.)
      I 3.1 to 5.5 mm (0.122 to 0.217 in.) J -1.2 to 1.2 mm (-0.047 to 0.047 in.)
      K 4.0 to 8.0 mm (0.157 to 0.315 in.) L -0.1 to 3.9 mm (-0.0039 to 0.154 in.)
  4. ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH
    1. Using SST, loosen the hinge bolts on the body and adjust the door position.
      • SST: 09812-00010
      GTY1017125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the hinge bolts on the body after the adjustment.

      Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

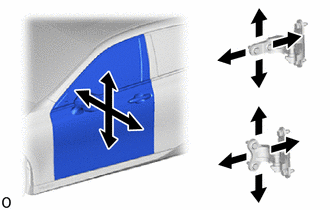

    3. Loosen the hinge bolts on the door and adjust the door position.
      GTY1017126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the hinge bolts on the door after the adjustment.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

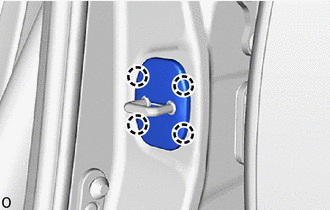

    5. Detach the claw and remove the door lock striker cover.
      GTY1017128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

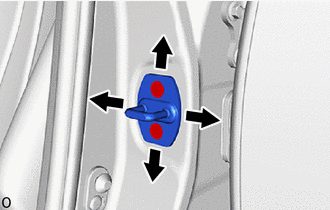

    6. Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
      GTY1017129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

    8. Attach the claw to install the door lock striker cover.
  5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [11/2020 - 12/2022]

  6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]

  7. PERFORM DIAGNOSTIC SYSTEM CHECK
  8. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [11/2020 - ]
