Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [11/2021 - 12/2022]

  3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  6. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR DOOR BELT FRONT SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 11
  8. REMOVE REAR DOOR BELT REAR SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12
  9. REMOVE REAR SPEAKER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  10. REMOVE REAR DOOR ARMREST SET BRACKET

    Refer to PROCEDURE - Step 14

  11. REMOVE REAR DOOR SERVICE HOLE COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 15
  12. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 16

  13. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 17

  14. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  15. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 19

  16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 21
  17. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  18. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY
    1. GTY1167298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Release plate - -
      Remove in this Direction TORX Screw
      Connector - -
      1. Disconnect the connector.
      2. Using a T30 "TORX" socket wrench, remove the 3 TORX screws.
      3. Move the rear door lock with motor assembly downward as shown in the illustration to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.
        NOTE:

        Do not damage to body by rear door lock assembly.

  19. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY
    1. GTY1018402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw to open the rear door lock cover sub-assembly.
      2. Disengage the claw to remove the rear door lock cover sub-assembly.
  20. REMOVE REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE
    1. GTY1018267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  21. REMOVE REAR DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE
    1. GTY1018341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  22. REMOVE DOOR LOCK WIRING HARNESS SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When reusing a removed rear door lock with motor assembly, replace the door lock harness seal with a new one.
    1. When reusing the rear door lock with motor assembly:

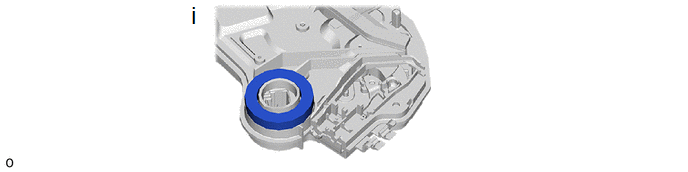

      GTY1160768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
