Roof Sunshade System - Diagnostic Codes & Symptom Tests
>>
Roof Sunshade System
>>
Roof Sunshade does not Move by Operating Roof Sunshade Switch [12/2023 - ]
>>

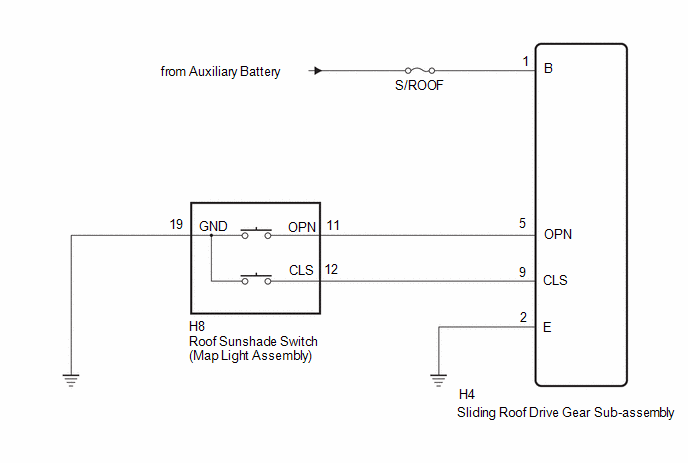

Wiring Diagram
Roof Sunshade does not Move by Operating Roof Sunshade Switch [12/2023 - ]: Wiring Diagram
w/ Front LiDAR Sensor:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Front LiDAR Sensor:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
