Removal [12/2023 - ]: Procedure

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

Be sure to read precaution thoroughly before servicing.

Refer to PRECAUTION [12/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]

REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Refer to REMOVAL [12/2023 - ]

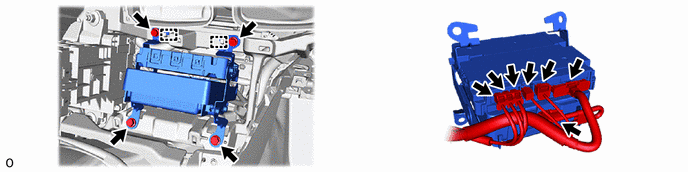

REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

w/o Front LiDAR Sensor:

When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.

w/ Front LiDAR Sensor:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Front LiDAR Sensor:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 TELEPHONE BRACKET (w/ Front LiDAR Sensor)

REMOVE NO. 2 TELEPHONE BRACKET (w/ Front LiDAR Sensor)

REMOVE NO. 1 INTEGRATION CONTROL SUPPLY BRACKET (w/o Front LiDAR Sensor)

REMOVE NO. 2 INTEGRATION CONTROL SUPPLY BRACKET (w/o Front LiDAR Sensor)
