Removal [12/2023 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 10

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL END

    Refer to PROCEDURE - Step 13

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 8

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Pull back the front door opening trim weatherstrip RH so that the front pillar garnish RH can be removed.
    • Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 2
  6. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure described for the LH side.
    Refer to PROCEDURE - Step 17
  7. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

    Refer to PROCEDURE - Step 20

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

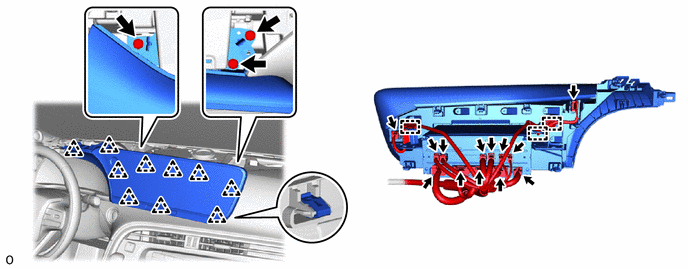

    1. GTY1169516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 RADIO RECEIVER BRACKET

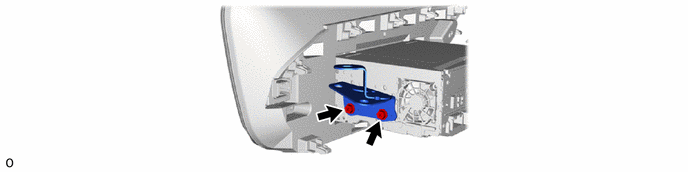

    1. GTY1169514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 RADIO RECEIVER BRACKET

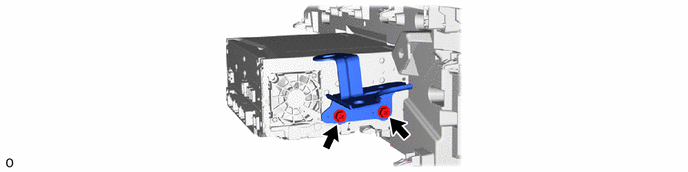

    1. GTY1169519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 9
