Removal [11/2021 - 12/2022]: Procedure

Refer to REMOVAL [11/2021 - 12/2022]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Clip

   Center Hood Cushion

   1. Remove the 2 clips.
   2. Remove the center hood cushion.

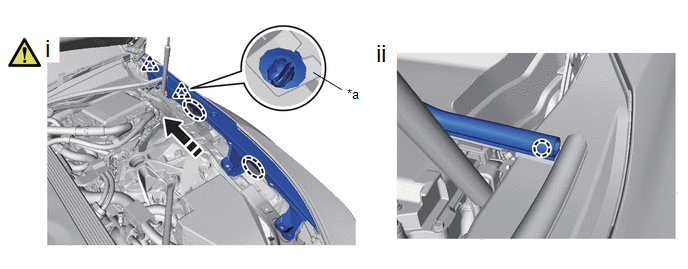

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Seat	-	-
   	Place Hand Here		Move in this Direction

   1. Hold the areas shown in the illustration and pull toward the rear of the vehicle to disconnect the seat from the clip.
   2. Detach the claw of the hood to cowl top seal and remove the front fender protector upper LH.

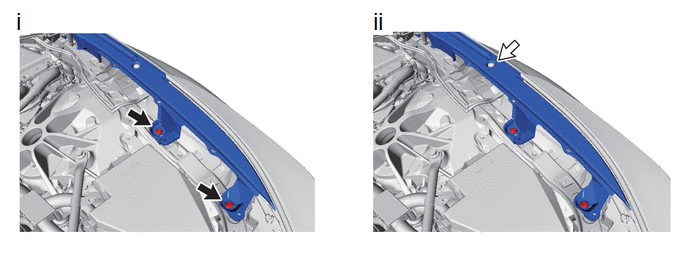

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Using a clip remover, detach the remaining 2 clips on the vehicle and install them to the front fender reinforcement sub-assembly top LH.

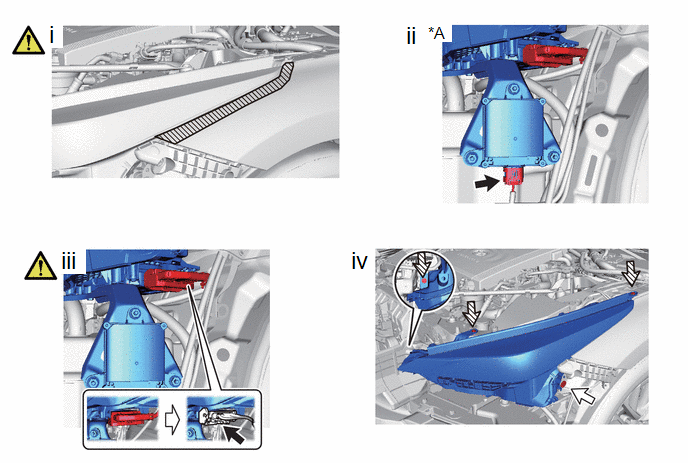

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Front Side Radar	-	-
   	Connector		Bolt
   	Screw	-	-

   1. Apply protective tape around the headlight assembly LH.
   2. w/ Front Side Radar:

      Disconnect the connector and detach the wire harness clamp.

   3. Release the connector lock lever and disconnect the connector as shown in the illustration.
   4. Remove the bolt and 3 screws.

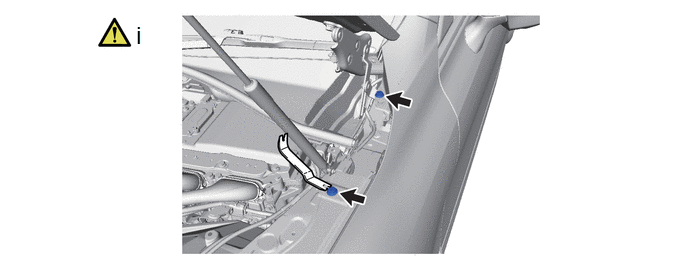

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here		Remove in this Direction (1)
   	Remove in this Direction (2)	-	-

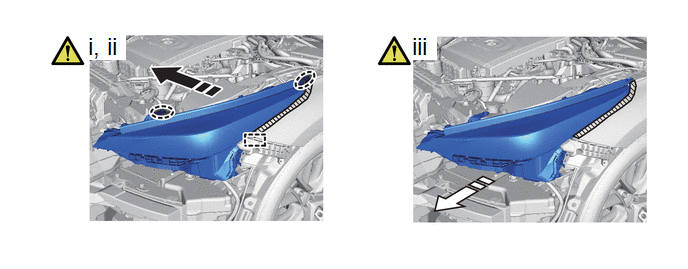

   1. Place your hands at the positions shown in the illustration and remove the bracket from the screw seat.
      NOTE:

      Do not break the bracket.

   2. Slide the headlight assembly LH in the removal direction (1) and detach the guide.
   3. Remove the headlight assembly LH in the removal direction (2) as shown in the illustration.
