Inspection [11/2020 - ]: Procedure

  1. INSPECT TRIP SWITCH
    1. Check the resistance.

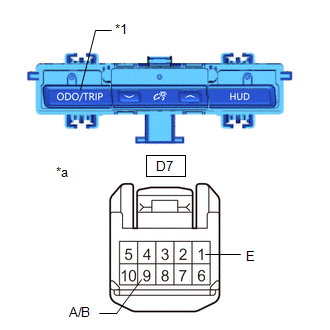

      GTY992343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 ODO TRIP Switch
      *a Component without harness connected
      (Trip Switch)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition Result
        D7-9 (A/B) - D7-1 (E) ODO/TRIP switch pressed Below 1 Ω Ω
        D7-9 (A/B) - D7-1 (E) ODO/TRIP switch not pressed 10 kΩ or higher kΩ

        If the result is not as specified, replace the trip switch.

    2. Check illumination.

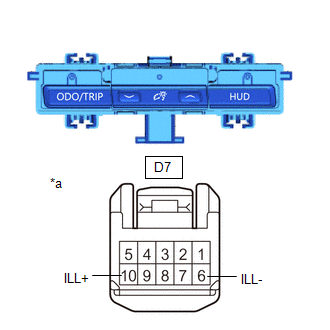

      GTY992348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Trip Switch)
      1. Apply auxiliary battery voltage to the connector and check the light illumination condition.

        OK

        Tester Connection Specified Condition
        Auxiliary battery positive (+) → D7-10 (ILL+)
        Auxiliary battery negative (-) → D7-6 (ILL-)        		 Illuminates

        If the result is not as specified, replace the trip switch.
