Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Click Here. Refer to PRECAUTION [11/2020 - 12/2022]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [11/2021 - 12/2022]

  3. REMOVE METER MIRROR SUB-ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

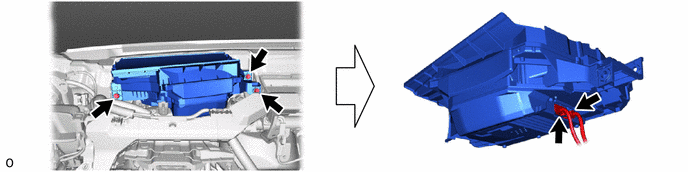

    1. GTY992480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
