Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

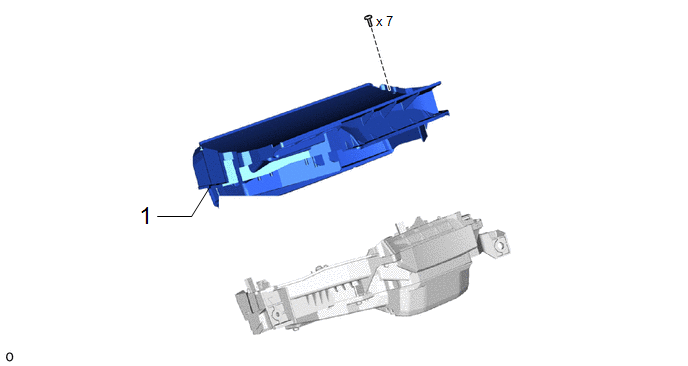

Fig 1: Headup Display Reassembly Components [11/2020 - 12/2023]
GTY991985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 NO. 1 COMBINATION METER MIRROR PLATE 83163 - - -
