Caution / Notice / Hint

COMPONENTS (INSTALLATION)

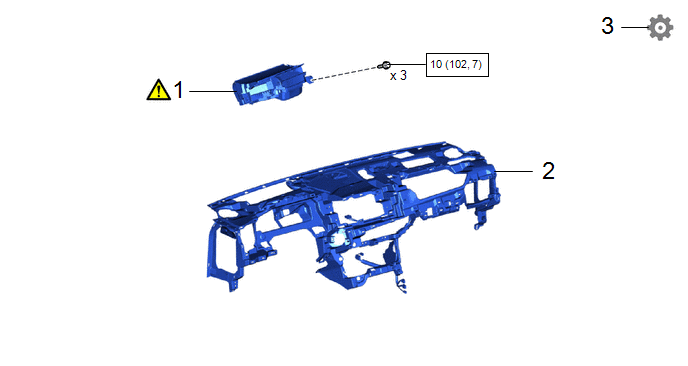

Fig 1: Headup Display Installation Components With Torque Specifications [11/2020 - 11/2021]
GTY992611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 METER MIRROR SUB-ASSEMBLY 83108 See step  1 - -
2 INSTRUMENT PANEL SAFETY PAD - - - -
3 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - See step  3
