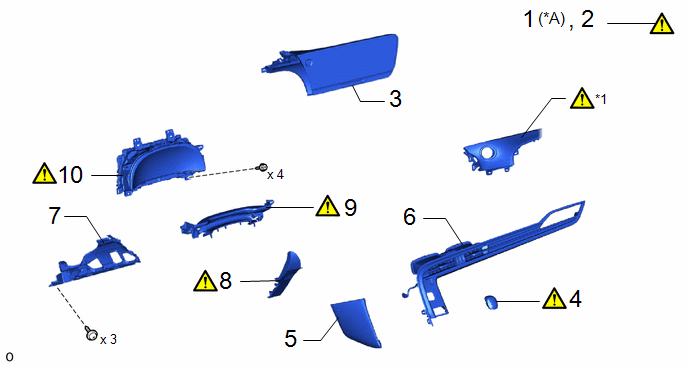

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CHECK SOFTWARE PART NUMBER | - | See step 1 | - | - |
| 2 | CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM | - | See step 2 | - | - |
| 3 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | - | - | - |
| 4 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | See step 4 | - | - |
| 5 | UPPER NO. 1 CONSOLE PANEL GARNISH | 58833B | - | - | - |
| 6 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | 55470 | - | - | - |
| 7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 8 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH | 55046A | See step 8 | - | - |
| 9 | LOWER INSTRUMENT COVER SUB-ASSEMBLY | 55407C | See step 9 | - | - |
| 10 | COMBINATION METER ASSEMBLY | 83100 | See step 10 | - | - |
| *A | w/ Front LiDAR Sensor | - | - |
| *1 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during the combination meter assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Combination meter assembly (w/ Front LiDAR Sensor) |
|
Advanced drive system | Refer to SOFTWARE UPDATE [11/2021 - ] |
| Combination meter assembly (w/o Front LiDAR Sensor) | Update ECU security key | Vehicle control history (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [11/2020 - ] |
| Software update | - | Refer to REGISTRATION [12/2022 - ] |
