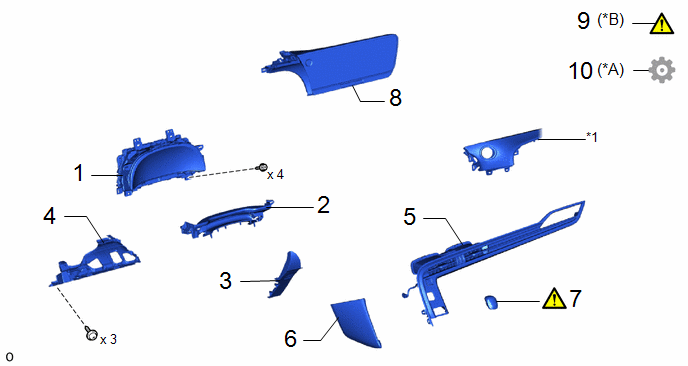

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| 2 | LOWER INSTRUMENT COVER SUB-ASSEMBLY | 55407C | - | - | - |
| 3 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH | 55046A | - | - | - |
| 4 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 5 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | 55470 | - | - | - |
| 6 | UPPER NO. 1 CONSOLE PANEL GARNISH | 58833B | - | - | - |
| 7 | SHIFT LEVER KNOB SUB-ASSEMBLY | 33504F | See step 7 | - | - |
| 8 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | - | - | - |
| 9 | CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM | - | See step 9 | - | - |
| 10 | PERFORM CALIBRATION | - | - | - | See step 10 |
| *A | w/ Advanced Drive | *B | for Power Tilt and Power Telescopic Steering Column |
| *1 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
