Parts Location [12/2023 - ]: Illustration

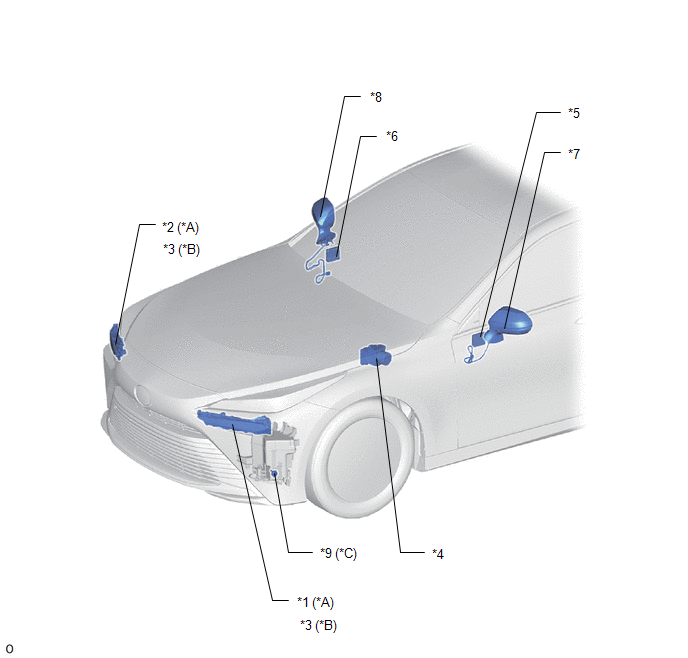

Fig 1: Meter / Gauge System Replacement Components (1 Of 3) [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Advanced Park	*B	w/o Advanced Park
*C	w/ Front LiDAR Sensor	-	-
*1	FRONT TURN SIGNAL LIGHT ASSEMBLY LH	*2	FRONT TURN SIGNAL LIGHT ASSEMBLY RH
*3	FRONT TURN SIGNAL LIGHT LED	*4	BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU)
*5	OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR RETRACTOR LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*6	OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RETRACTOR RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*7	FRONT MULTIPLEX NETWORK DOOR ECU LH	*8	FRONT MULTIPLEX NETWORK DOOR ECU RH
*9	LEVEL WARNING SWITCH ASSEMBLY	-	-

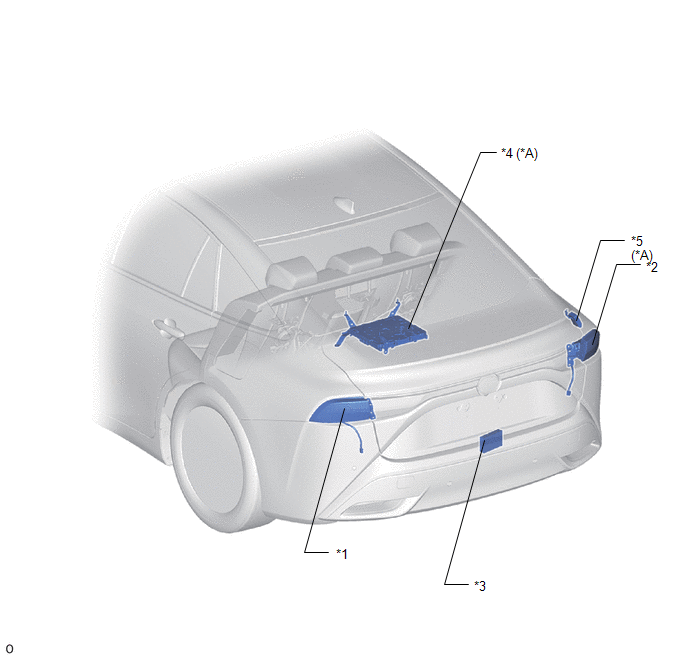

Fig 1: Meter / Gauge System Replacement Components (2 Of 3) [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Front LiDAR Sensor	-	-
*1	REAR COMBINATION LIGHT ASSEMBLY LH - REAR TURN SIGNAL LIGHT LED LH - REAR COMBINATION LIGHT CORD LH	*2	REAR COMBINATION LIGHT ASSEMBLY RH - REAR TURN SIGNAL LIGHT LED RH - REAR COMBINATION LIGHT CORD RH
*3	STEREO COMPONENT AMPLIFIER ASSEMBLY	*4	ADVANCED DRIVE ECU ASSEMBLY
*5	TIRE PRESSURE WARNING ECU AND RECEIVER	-	-

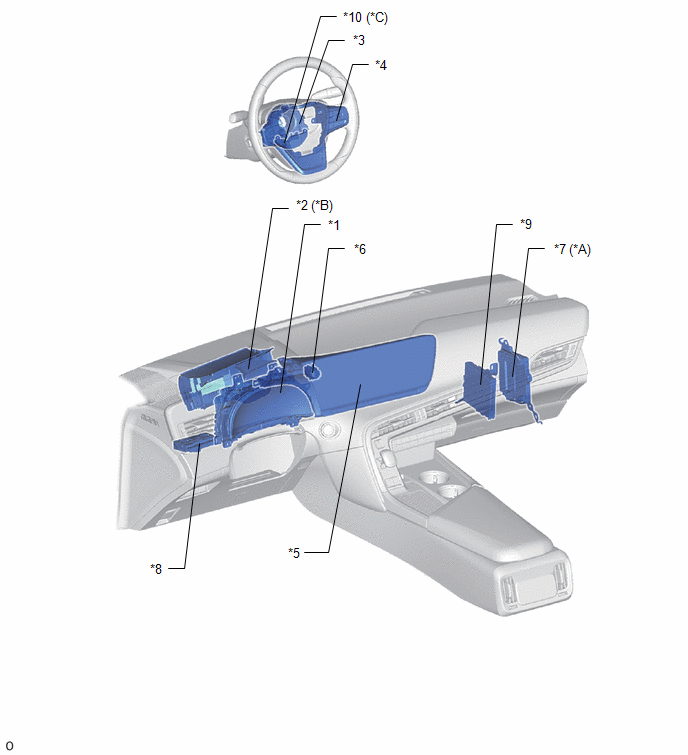

Fig 1: Meter / Gauge System Replacement Components (3 Of 3) [12/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Front LiDAR Sensor	*B	w/ Headup Display
*C	w/o Front LiDAR Sensor	-	-
*1	COMBINATION METER ASSEMBLY	*2	METER MIRROR SUB-ASSEMBLY
*3	SPIRAL CABLE SUB-ASSEMBLY	*4	STEERING PAD SWITCH ASSEMBLY
*5	RADIO AND DISPLAY RECEIVER ASSEMBLY	*6	HAZARD WARNING SIGNAL SWITCH ASSEMBLY
*7	ETHERNET SWITCHING HUB ECU ASSEMBLY	*8	TRIP SWITCH (LIGHT CONTROL RHEOSTAT)
*9	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*10	STEERING VIBRATION AND HEATER ECU
