DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [11/2021 - 12/2023]: Wiring Diagram

  1. w/o Advanced Drive
    GTY1167328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1162831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Advanced Drive

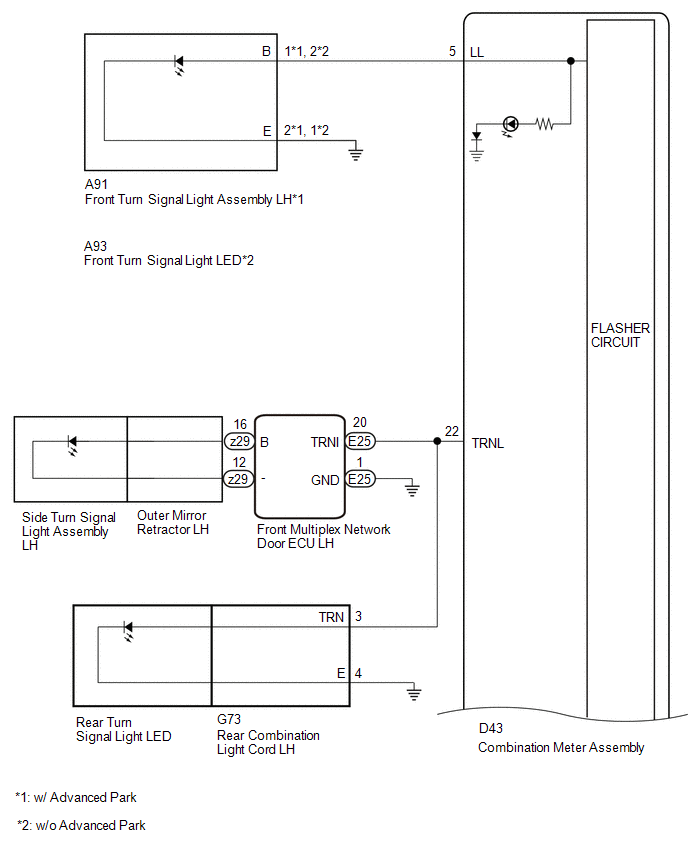

    GTY1168671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

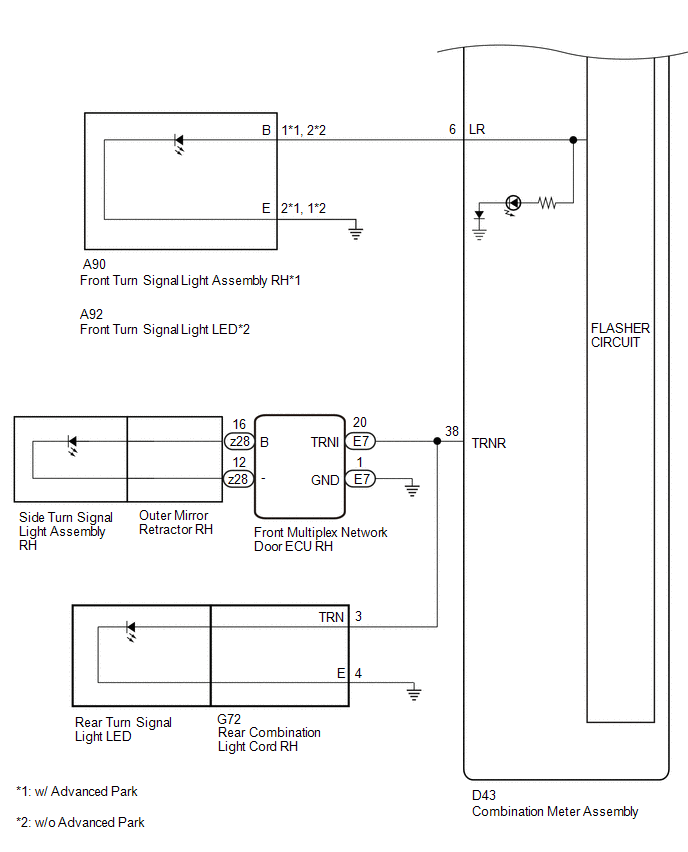

    GTY1163219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
