DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [11/2020 - 11/2021]: Wiring Diagram

  1. w/o Advanced Drive
    GTY1018271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1018059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Advanced Drive

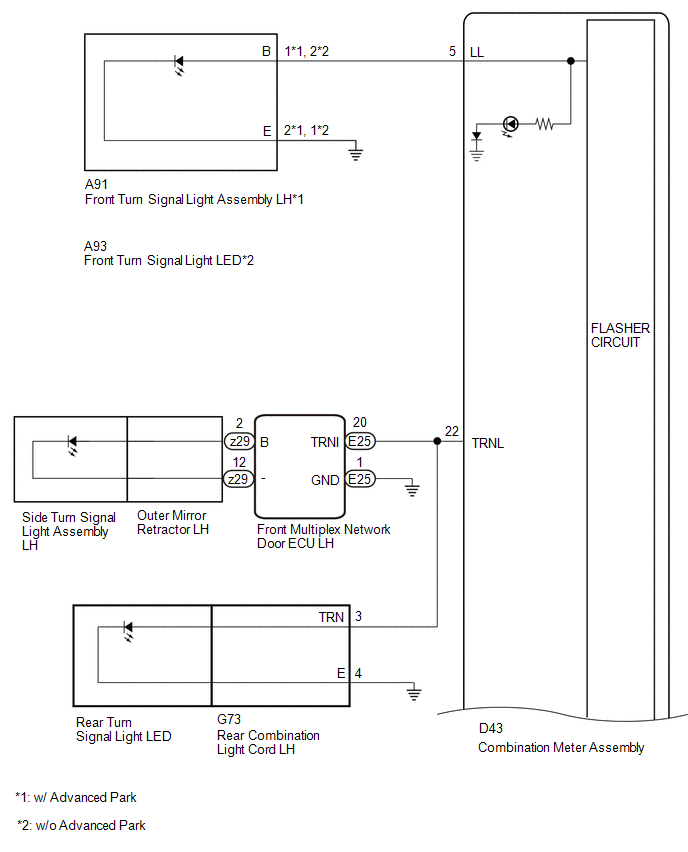

    GTY992408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1016486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
