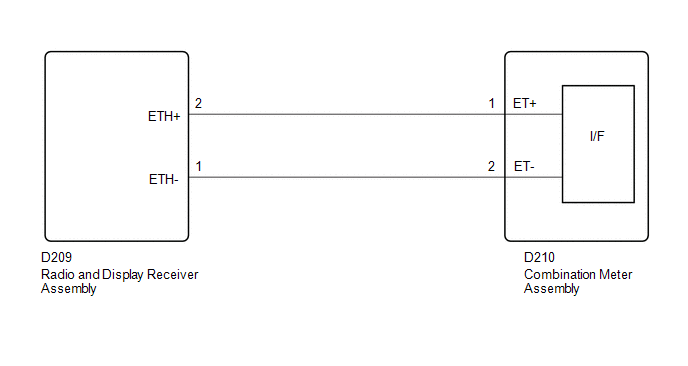

DTC B1328-87: Lost Communication with Navigation System (Ethernet) Missing Message [12/2023 - ]: Wiring Diagram

GTY1210032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
