DTC B1321-87: Lost Communication with EMV Missing Message [11/2021 - 12/2022]: Wiring Diagram

  1. w/ Advanced Drive

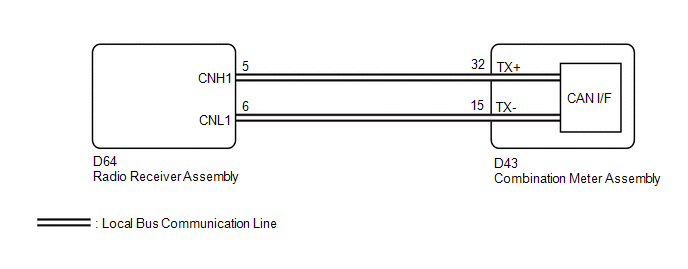

    GTY1017746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Advanced Drive

    w/ Navigation System:

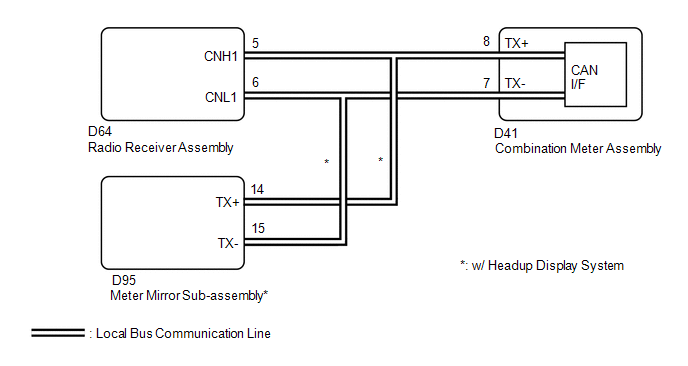

    GTY982365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    w/o Navigation System:

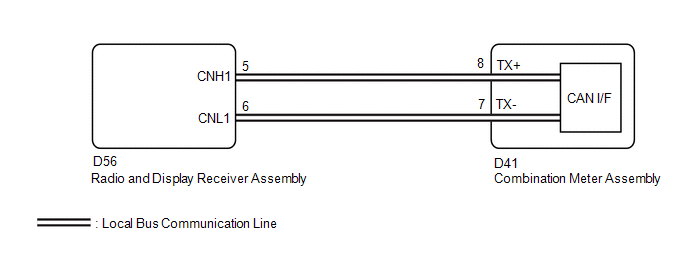

    GTY1017185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
