HEADUP Display System - Diagnostic Codes & Circuit Tests
>>
HEADUP Display System
>>
DTC B1511-87: Lost Communication with Meter Gigabit Video Interface Missing Message [11/2021 - 12/2023]
>>

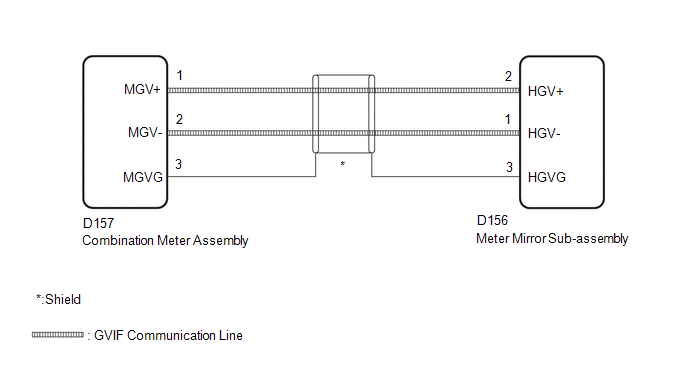

Wiring Diagram
DTC B1511-87: Lost Communication with Meter Gigabit Video Interface Missing Message [11/2021 - 12/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
