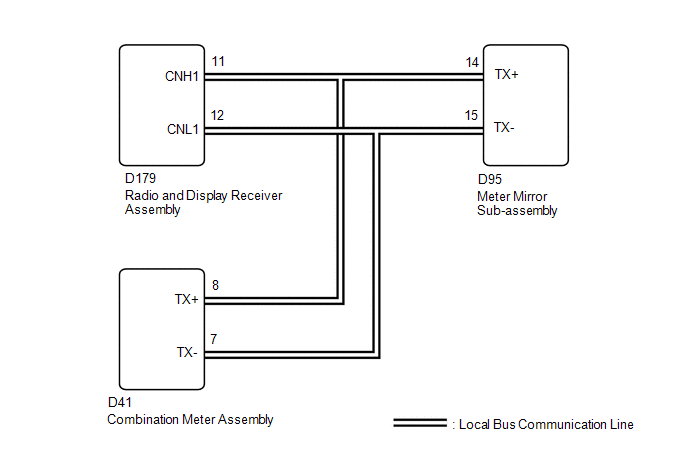

DTC B1321-87: Lost Communication with EMV Missing Message [12/2022 - 12/2023]: Wiring Diagram

GTY1163338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
