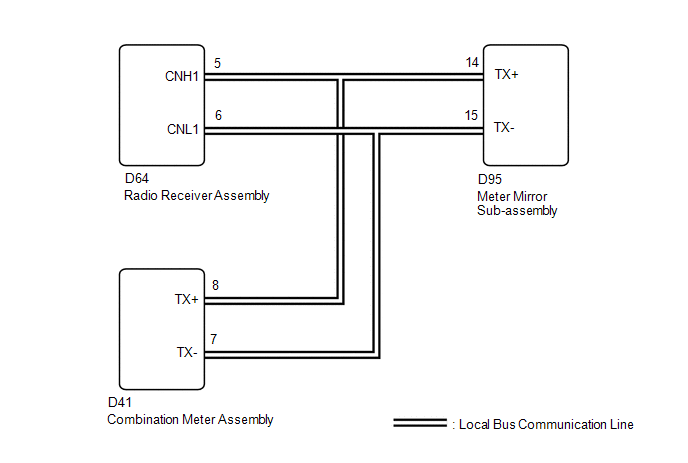

DTC B1321-87: Lost Communication with EMV Missing Message [11/2020 - 12/2022]: Wiring Diagram

GTY975381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
