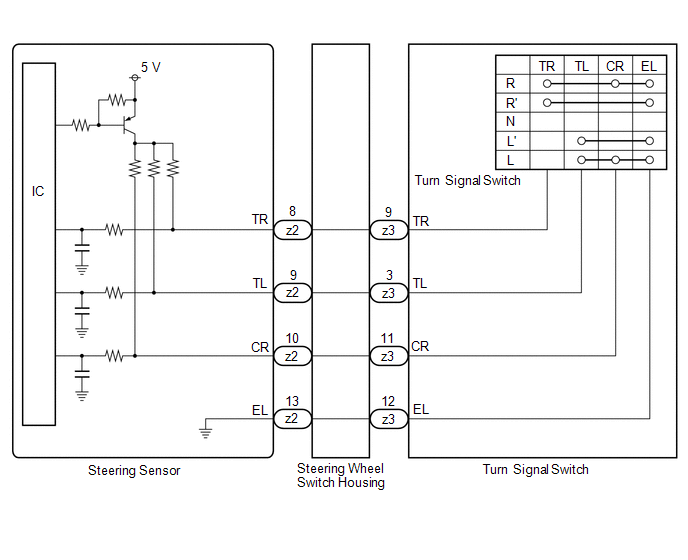

Turn Signal Switch Circuit [11/2020 - 12/2023]: Wiring Diagram

GTY982353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
