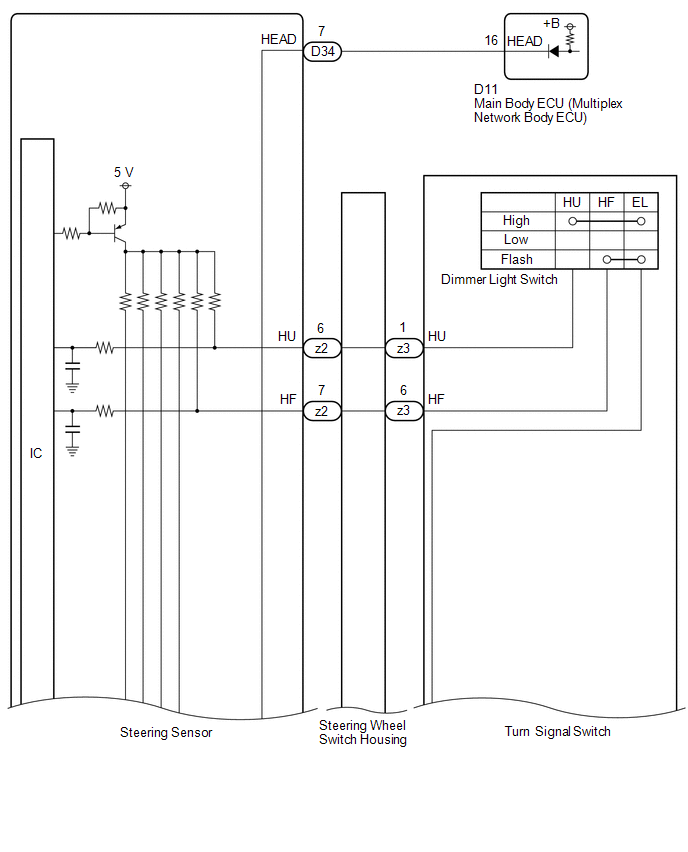

Headlight Dimmer Switch Circuit [11/2020 - 12/2023]: Wiring Diagram

GTY980580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY983216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
