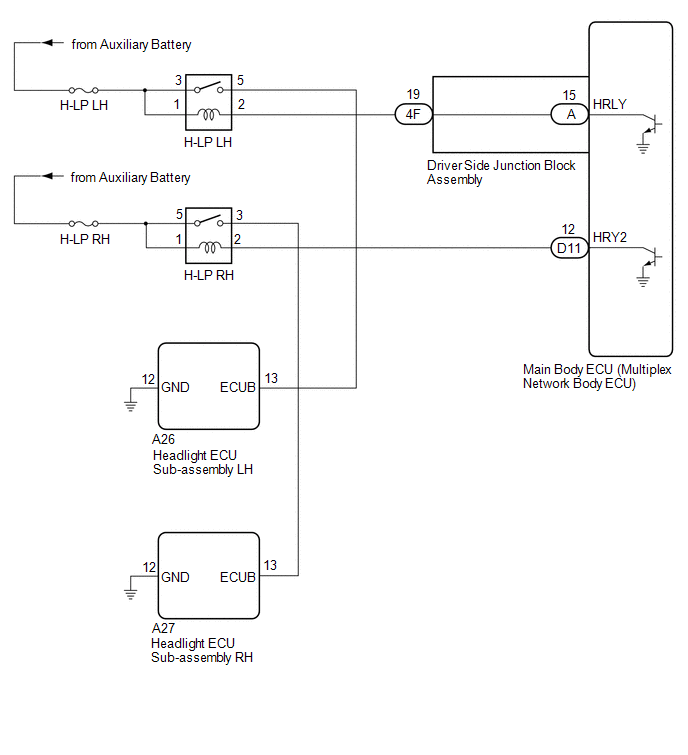

DTC B242F: Open in B Power Line [11/2020 - 08/2021]: Wiring Diagram

GTY1167451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
