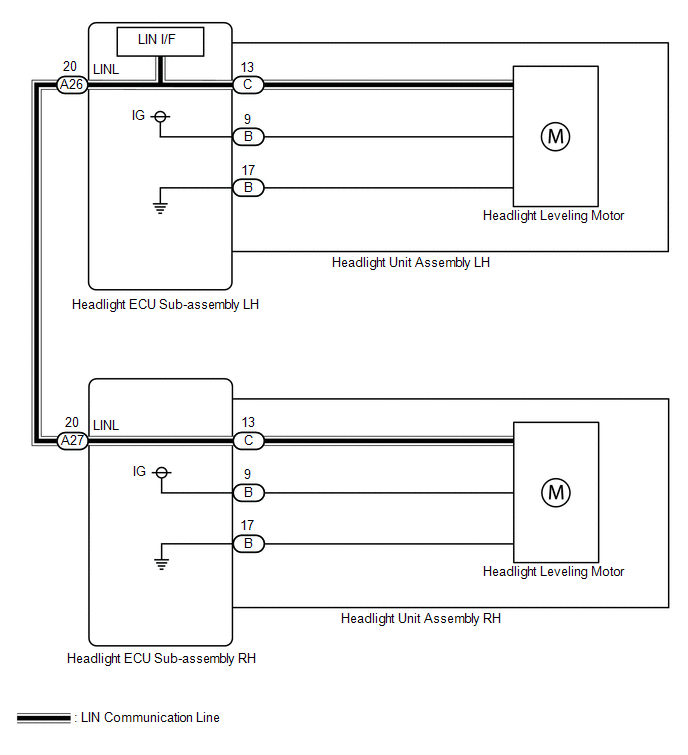

DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [11/2020 - 08/2021]: Wiring Diagram

GTY982933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
